Ifm 3G-OTH-176058 — Technical Specifications

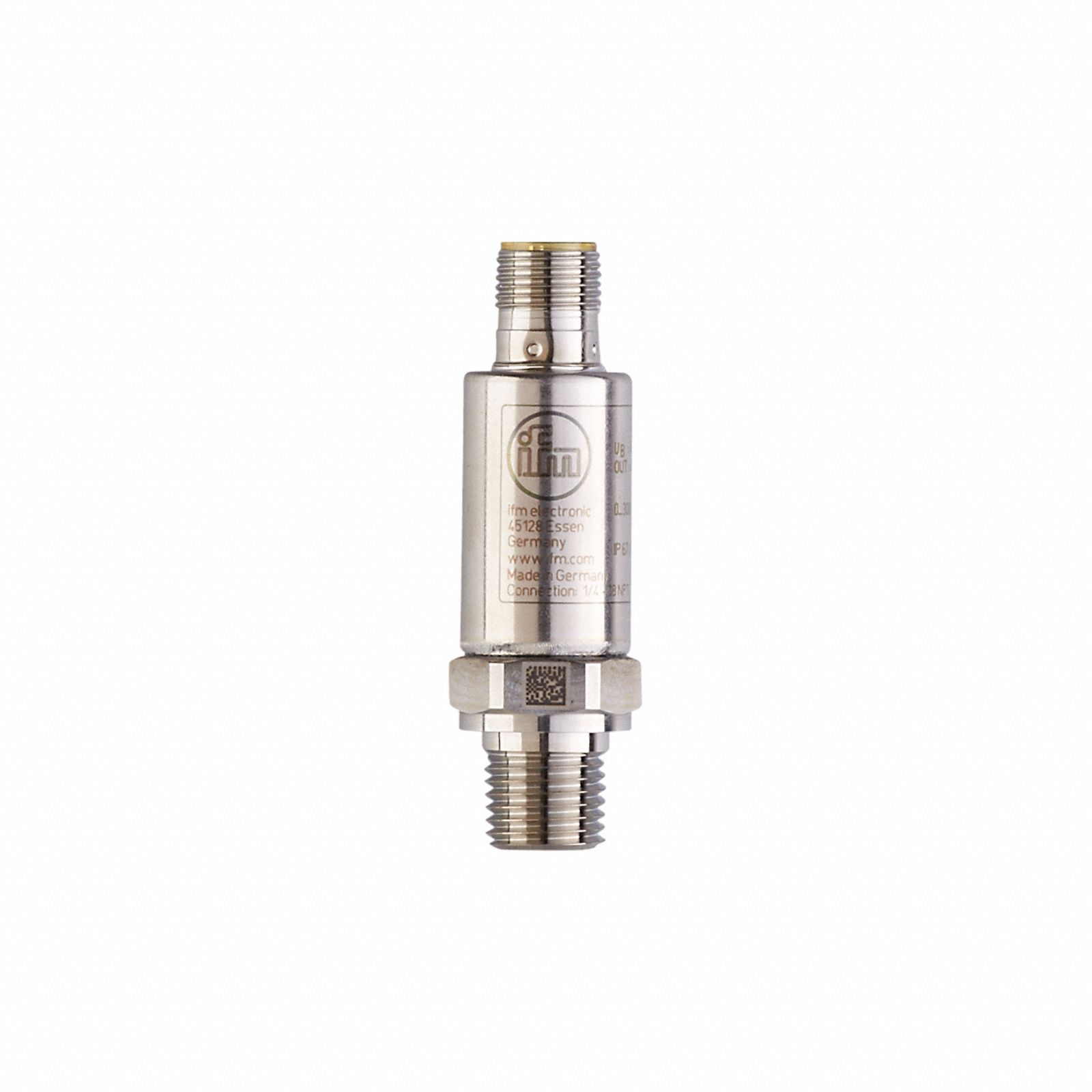

The IFM Pressure Transmitter: 940 psi (SKU 413LE4, MPN PT2334) is a miniature pressure transmitter with a 4-pin M12 connector. It features a 4 to 20mA output, ±0.5% accuracy, an overpressure rating of 940 psi, and a burst pressure of 8,700 psi. The stainless steel housing has an IP69K rating, and the process connection is a 1/4 in male NPT. Power required is 8.5 to 36V DC.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 4 to 20mA, IP67/IP69K |
| Brand | IFM |
| Output | 4 to 20mA |
| Accuracy | ±0.5% |
| Male NPT | 1/4 in |
| IP Rating | IP69K |
| Overpressure | 940 psi |
| M12 Connector | 4-Pin |
| Burst Pressure | 8,700 psi |
| Power Required | 8.5 to 36V DC |
| Pressure Range | 940 psi |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | PT2334 |
| Process Connection Gender | Male |
