Ifm 3G-OTH-33723 — Technical Specifications

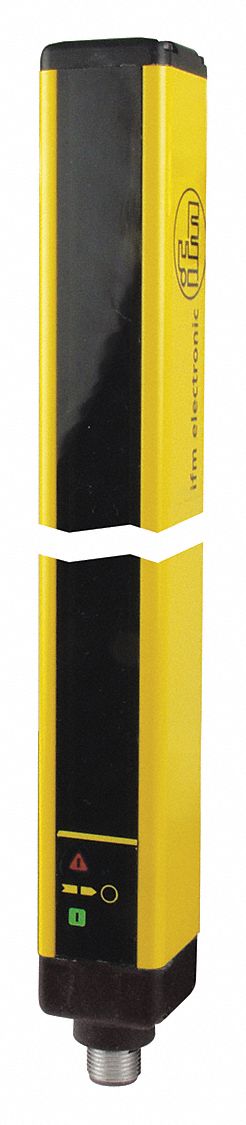

The IFM OY009S is a light curtain for finger detection, featuring 96 beams with 14 mm spacing and a 1,360 mm protected height. It operates on 24V DC with a 950 nm IR LED light source, and provides safety and auxiliary outputs rated at 400 mA @ 24V DC. Both the receiver and transmitter use M12 electrical connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 |
| Beams | 96 |
| Brand | IFM |
| Spacing | 14 mm |
| Cable Lg | 100 m |
| Protected Ht | 1,360 mm |
| Type Of Light | 950 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 400 mA @ 24V DC |
| Auxiliary Contact Rating | 400 mA @ 24V DC |
| Manufacturer Part Number | OY009S |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
