Ifm 3G-OTH-08676 — Technical Specifications

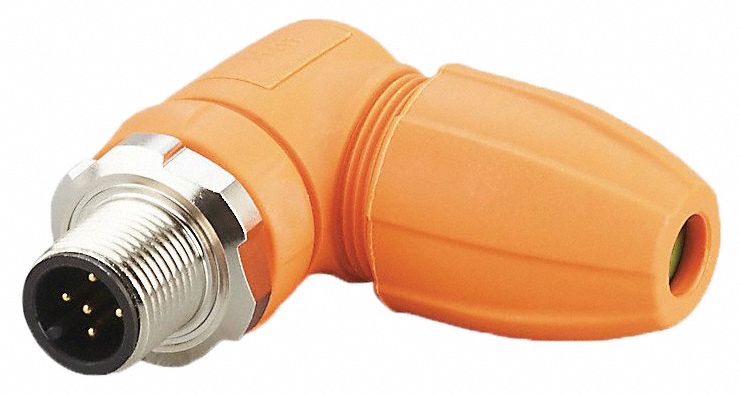

The IFM EVC817 is an A-coded M12 circular connector designed for field wiring in washdown environments. This 5-pin pin-type connector features screw terminals, a 90° angled orientation, and a nylon housing with an IP69K rating. It supports DC power and signal/data applications up to 60V AC, with gold-plated contacts and a male thread front-mounting style.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 5 |
| Type | M12 Male Thread, IP65/IP67/IP68/IP69K, Screw Terminals |
| Brand | IFM |
| Coding | A |
| IP Rating | IP69K |
| Application | DC Power |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 60V AC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | EVC817 |
