Ifm 3G-OTH-08610 — Technical Specifications

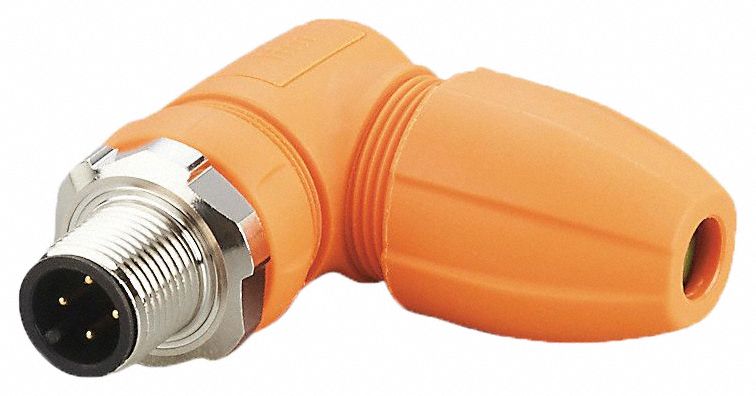

The IFM M12 Circular Connector (MPN EVC813) is an A-coded, field-wireable M12 circular connector with a pin-type connector body and a 90° angle orientation. It features a nylon housing, gold-plated contacts, and screw terminals for DC power applications, with a voltage rating of 250V AC and an IP67 rating. The connector uses a front-mounting, male-thread design with an M12 thread size.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP65/IP67/IP68/IP69K, Screw Terminals |
| Brand | IFM |
| Coding | A |
| IP Rating | IP67 |
| Application | DC Power |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 250V AC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | EVC813 |
