Ifm 3G-OTH-10748 — Technical Specifications

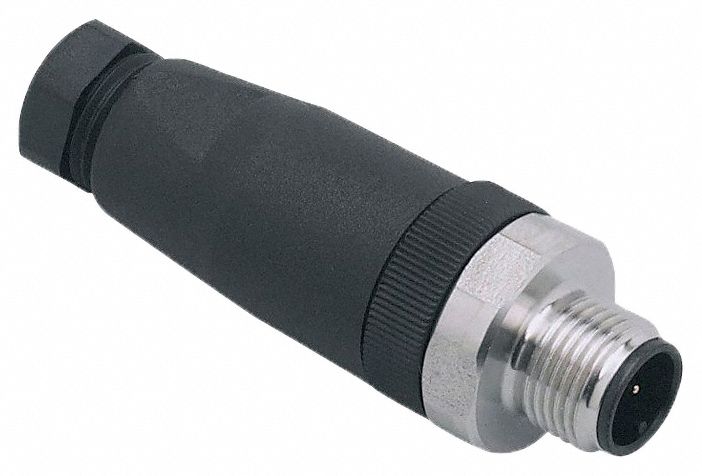

The IFM M12 Circular Connector (SKU 787GF3, MPN E18163) is a field-wireable industrial M12 circular connector with A coding, featuring a 4-pin pin-type connector body, straight orientation, and screw terminals for cable connection. It is rated IP68, has a voltage rating of 300V DC, and is constructed with a nylon housing and M12 male thread for front mounting. This A-coded connector is designed for signal, low-power, and Gigabit data applications with sensors.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP68, Screw Terminals, Straight, Nylon |
| Brand | IFM |
| Coding | A |
| IP Rating | IP68 |
| Application | Sensors |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 300V DC |
| Connection Type | Cable Connection With Screw Terminals |
| Housing Material | Nylon |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | E18163 |
