Ifm 3G-OTH-10738 — Technical Specifications

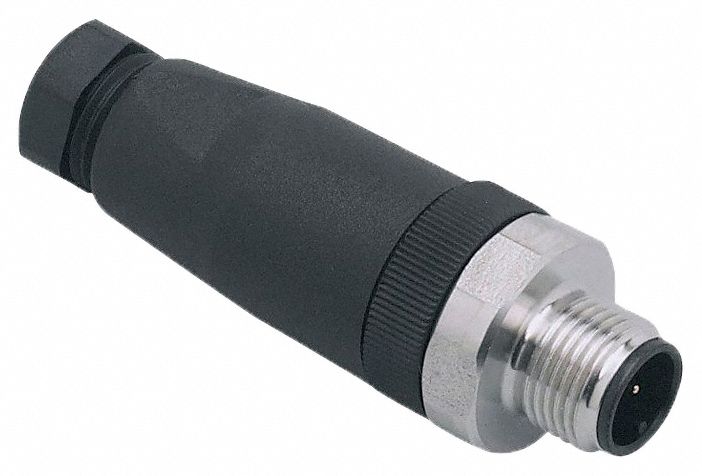

The IFM M12 Circular Connector (SKU 787GG6, MPN E30019) is a field-wireable industrial M12 circular connector with A coding for signal, low-power, and gigabit data applications. It features a 4-pin pin-type connector body, straight orientation, screw terminals, and gold-plated contacts, with a voltage rating of 10 to 55V DC. The connector has an M12 male thread, front mounting style, IP67 rating, and a nylon housing.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP67, Screw Terminals, Straight, Nylon |
| Brand | IFM |
| Coding | A |
| IP Rating | IP67 |
| Application | Signal |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 10 to 55V DC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | E30019 |
