Ifm 3G-OTH-08827 — Technical Specifications

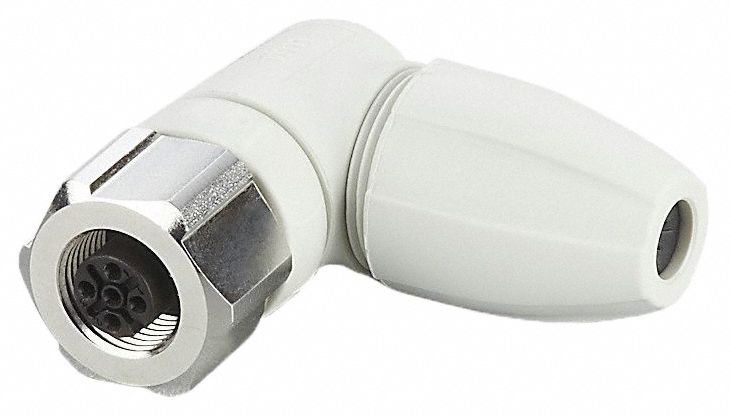

The IFM M12 Circular Connector (MPN EVF566) is an A-coded, field-wireable washdown-rated M12 circular socket with a 90° angle, designed for signal, low-power, and gigabit data applications. It features a nylon housing, gold-plated contacts, screw terminals, and front mounting with a female M12 thread, rated at 300V DC and IP68.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 Female Thread, IP65/IP67/IP68/IP69K |
| Angle | 90° |
| Brand | IFM |
| Coding | A |
| Socket | 4 |
| IP Rating | IP68 |
| Application | Signal |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Female Thread |
| Voltage Rating | 300V DC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Connector Body Type | Socket |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | EVF566 |
