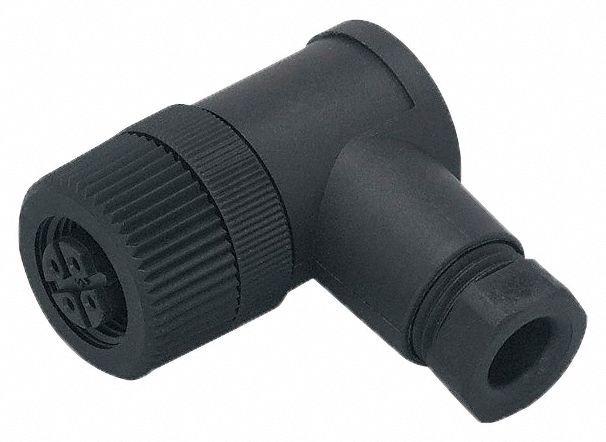

Ifm 3G-OTH-11060 — Technical Specifications
The IFM M12 Circular Connector (SKU 787GJ6, MPN E10108) is a field-wireable industrial socket with B-coding for Profibus and Interbus fieldbus applications. It features a 90° angle, M12 female thread, screw terminals, gold-plated contacts, and a polyester housing with IP67 protection. Rated at 250V AC, this front-mounting connector is designed for reliable field wiring in industrial networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 Female Thread, IP67, Screw Terminals |
| Angle | 90° |
| Brand | IFM |
| Coding | B |
| Socket | 4 |
| IP Rating | IP67 |
| Application | Fieldbus |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Female Thread |
| Voltage Rating | 250V AC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Polyester |
| Connector Body Type | Socket |
| Connector Application | B-Coded for Profibus & Interbus |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | E10108 |
