Ifm 3G-OTH-89324 — Technical Specifications

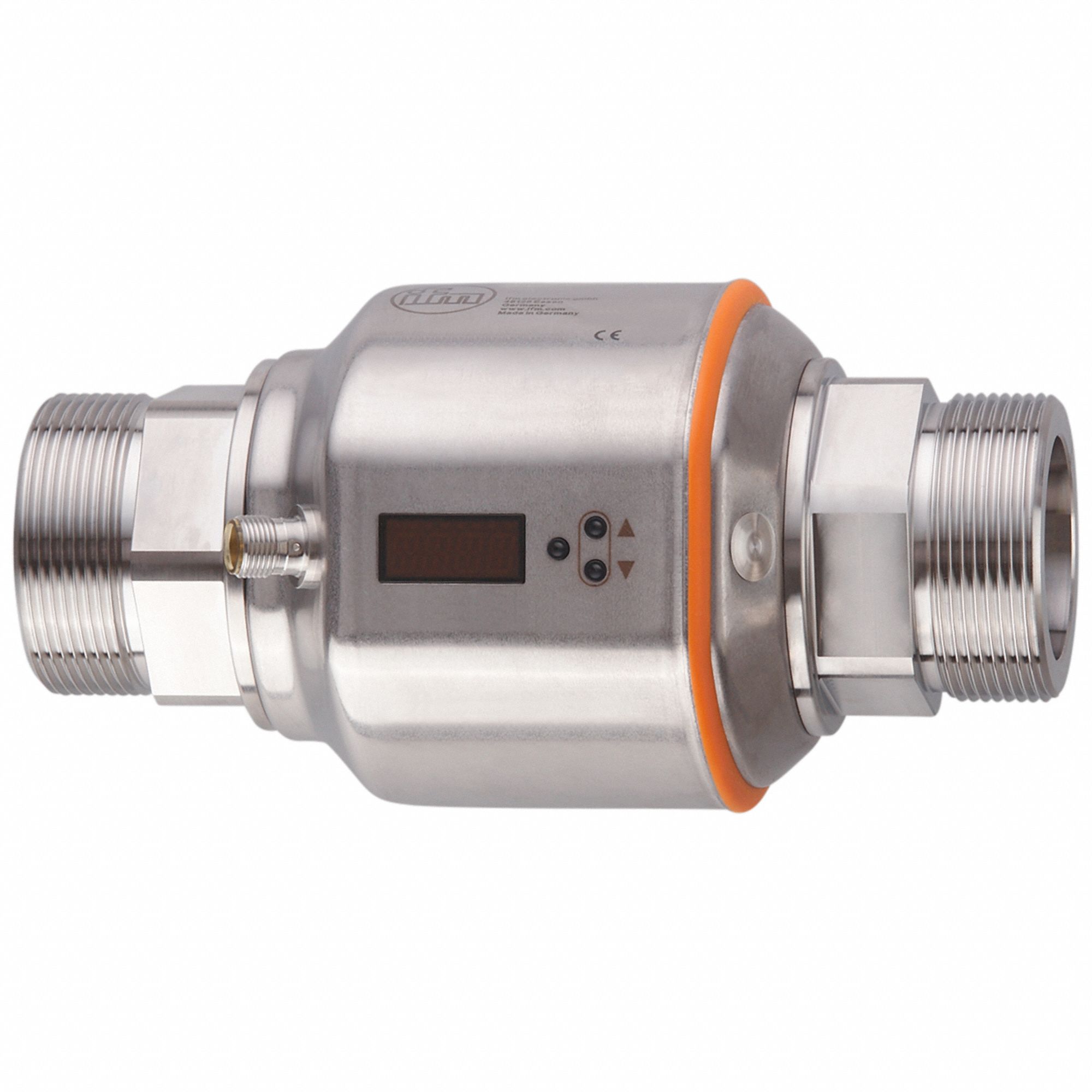

The IFM Magnetic-Inductive Flow Meter (SKU 801TH6, MPN SM0510) is an inline electromagnetic flowmeter designed for water applications. It features an LED display, a stainless steel seal, and a Viton O-ring, with an accuracy of +/-0.8% MW + 0.5% MEW. The unit operates on a maximum voltage of 30V DC and fits pipe sizes of 1-1/2 to 2 inches.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Electromagnetic, Insertion, Viton |
| Brand | IFM |
| Accuracy | +/-0.8% MW + 0.5% MEW |
| Display Type | LED |
| Max. Voltage | 30V DC |
| Product Type | Magnetic-Inductive Flow Meter |
| For Pipe Size | 1-1/2 to 2 in |
| Seal Material | Stainless Steel |
| O-Ring Material | Viton |
| Mounting Orientation | Universal |
| Manufacturer Part Number | SM0510 |
