Ifm 3G-OTH-37932 — Technical Specifications

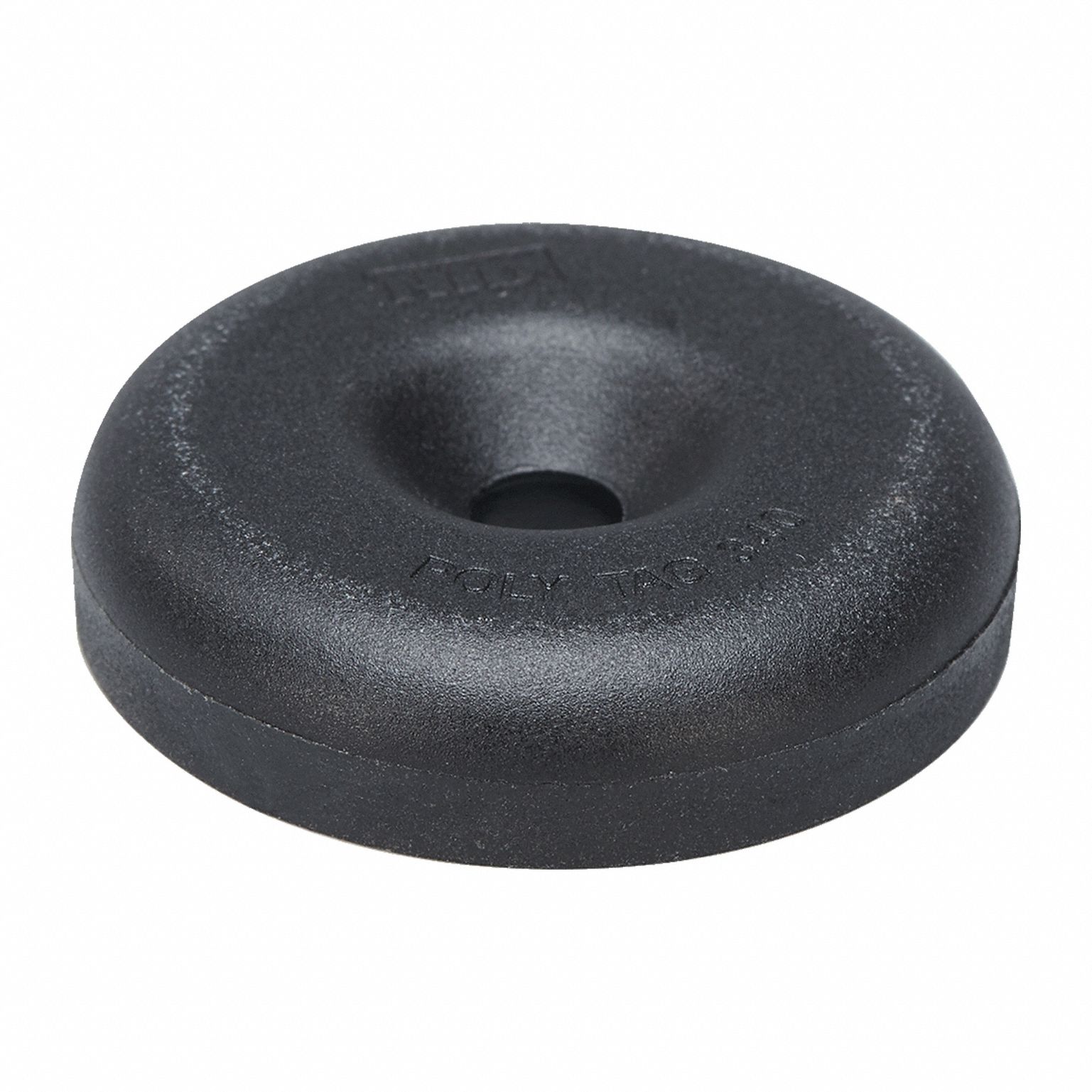

The IFM RFID Tag: Round (SKU 856MF7, MPN UR0003) is a medium range HF RFID tag designed for coding workpiece carriers in routing conveyors. It operates at 13.56 MHz, features an IP68 rating, and is constructed from PA 6 material with a stick-on mounting type. The tag has an 8 mm thickness and a 34 mm overall diameter.
Technical Specifications
| Parameter | Value |
|---|---|
| MHz | 13.56 |
| Type | Screw/Stick-On, IP68, PA 6, 8 mm |
| Brand | IFM |
| IP Rating | IP68 |
| Application | Coding Workpiece Carriers in Routing Conveyor |
| Overall Dia | 34 mm |
| Pack Quanity | 1 |
| Tag Material | PA 6 |
| Mounting Type | Stick-On |
| Operating Frequency | 13.56 MHz |
| Manufacturer Part Number | UR0003 |
