Igus 3G-OTH-103765 — Technical Specifications

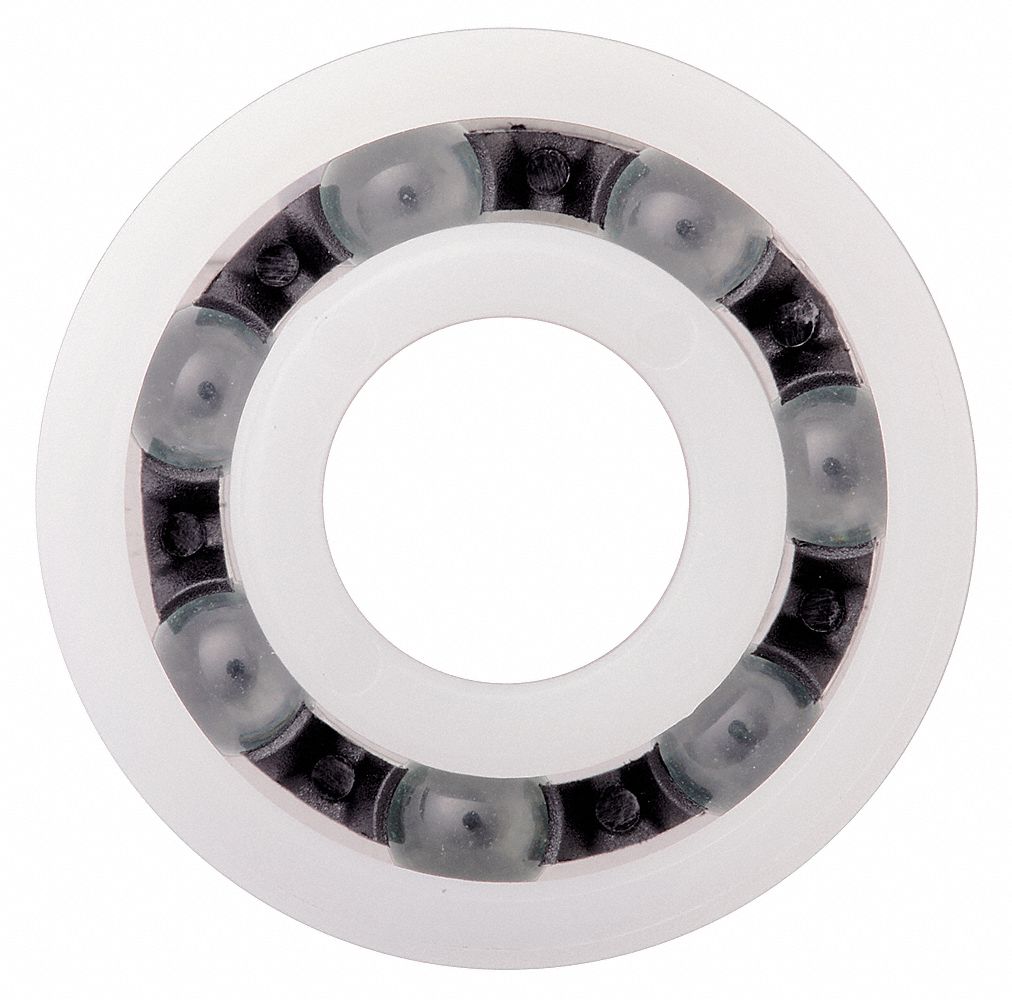

The IGUS Polymer Ball Bearing: 626 is a maintenance-free plastic radial ball bearing with a metric system of measurement. It features a 6 mm bore, 19 mm outer diameter, and 6 mm width, with an open design and polymer ring construction rated for a maximum temperature of 80°C. This bearing is identified by bearing industry number 626 and manufacturer part number B626B1E.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 19 mm |
| Wd | 6 mm |
| Bore | 6 mm |
| Type | Open, Polymer Ring |
| Max Temp | 80°C |
| System Of Measurement | Metric |
| Bearing Industry Number | 626 |
| Manufacturer Part Number | B626B1E |
