Igus 3G-OTH-103479 — Technical Specifications

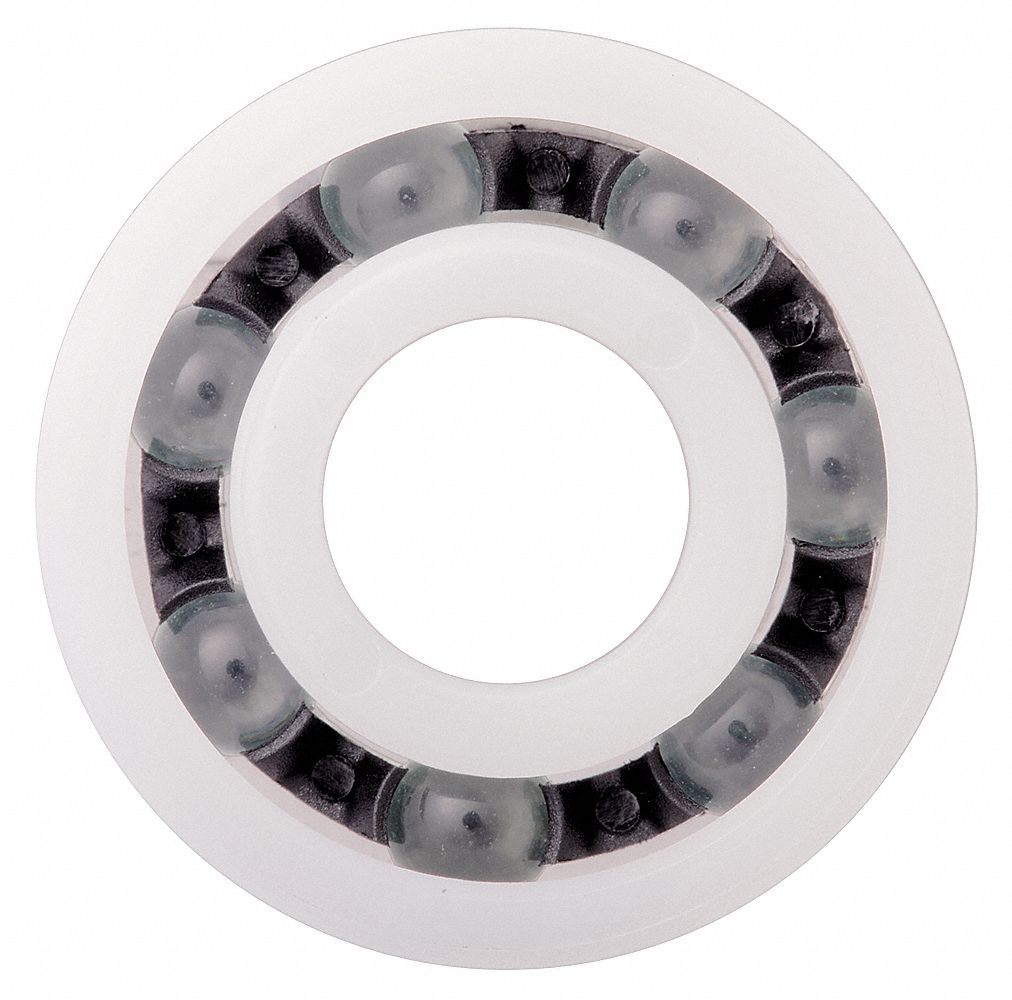

The IGUS Polymer Ball Bearing: 6000 is a maintenance-free plastic radial ball bearing with a metric system of measurement. It features an open design, a 10 mm bore, 26 mm outer diameter, and 8 mm width, with a polymer ring and a maximum operating temperature of 80°C. The manufacturer part number is B6000B1E.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 26 mm |
| Wd | 8 mm |
| Bore | 10 mm |
| Type | Open, Polymer Ring |
| Max Temp | 80°C |
| System Of Measurement | Metric |
| Bearing Industry Number | 6000 |
| Manufacturer Part Number | B6000B1E |
