Igus 3G-OTH-103955 — Technical Specifications

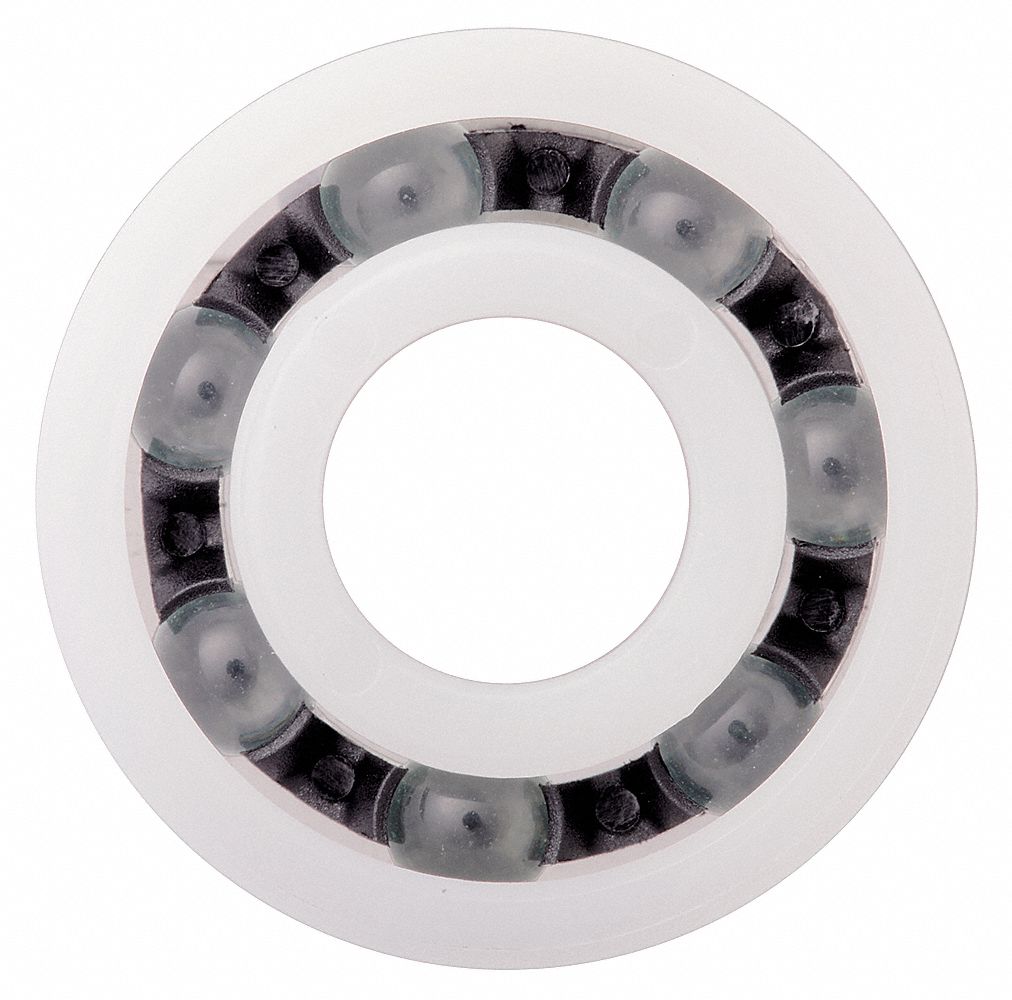

The IGUS Polymer Ball Bearing 6004 is a maintenance-free plastic radial ball bearing with a metric 20 mm bore, 42 mm OD, and 12 mm width. It features an open design with a polymer ring and a maximum operating temperature of 80°C. This bearing is identified by the industry number 6004 and manufacturer part number B6004B1E.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 42 mm |
| Wd | 12 mm |
| Bore | 20 mm |
| Type | Open, Polymer Ring |
| Max Temp | 80°C |
| System Of Measurement | Metric |
| Bearing Industry Number | 6004 |
| Manufacturer Part Number | B6004B1E |
