Igus 3G-OTH-103550 — Technical Specifications

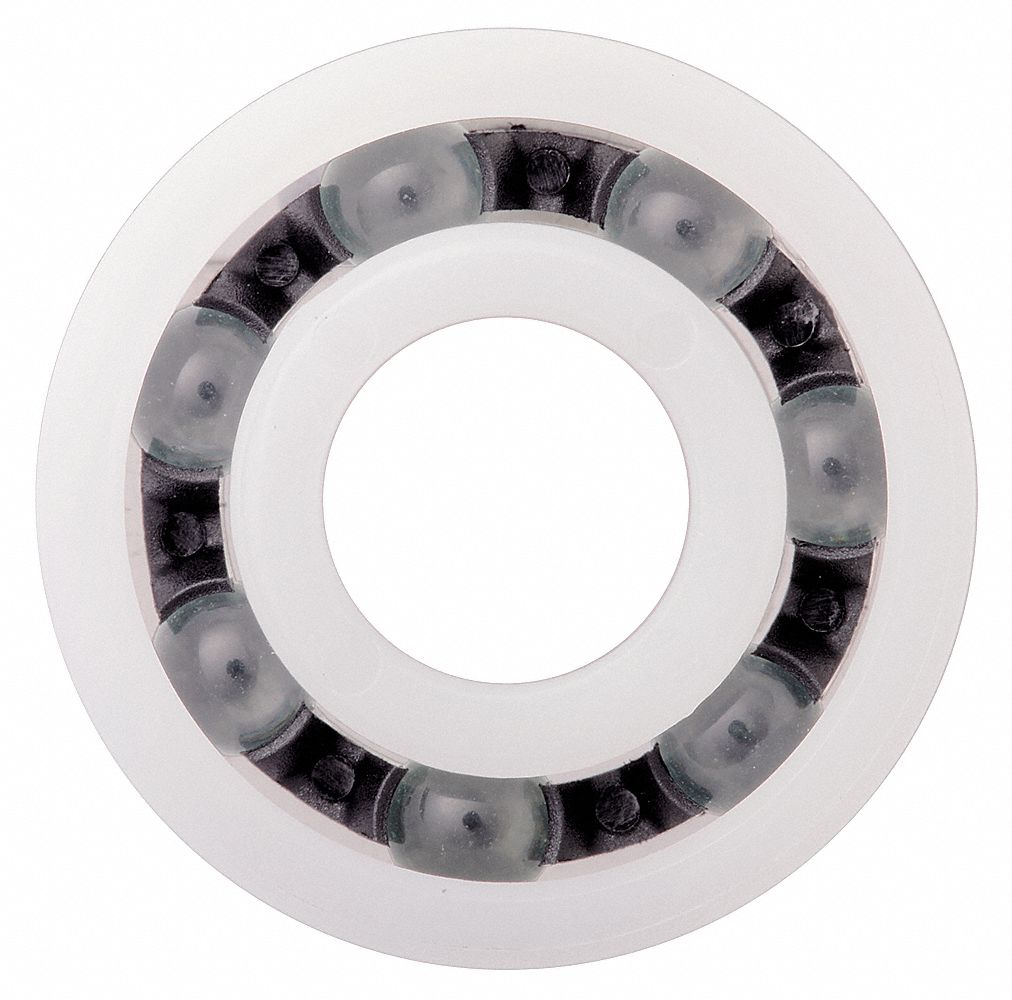

The IGUS Polymer Ball Bearing: 623 is a maintenance-free plastic radial ball bearing with a metric system of measurement. It features an open design, a 3 mm bore, a 10 mm outer diameter, and a 4 mm width, constructed with a polymer ring and glass ball (MPN B623B1G). This bearing is identified by the bearing industry number 623.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 10 mm |
| Wd | 4 mm |
| Bore | 3 mm |
| Type | Open, Polymer Ring, Glass Ball |
| System Of Measurement | Metric |
| Bearing Industry Number | 623 |
| Manufacturer Part Number | B623B1G |
