Ina 3G-OTH-107121 — Technical Specifications

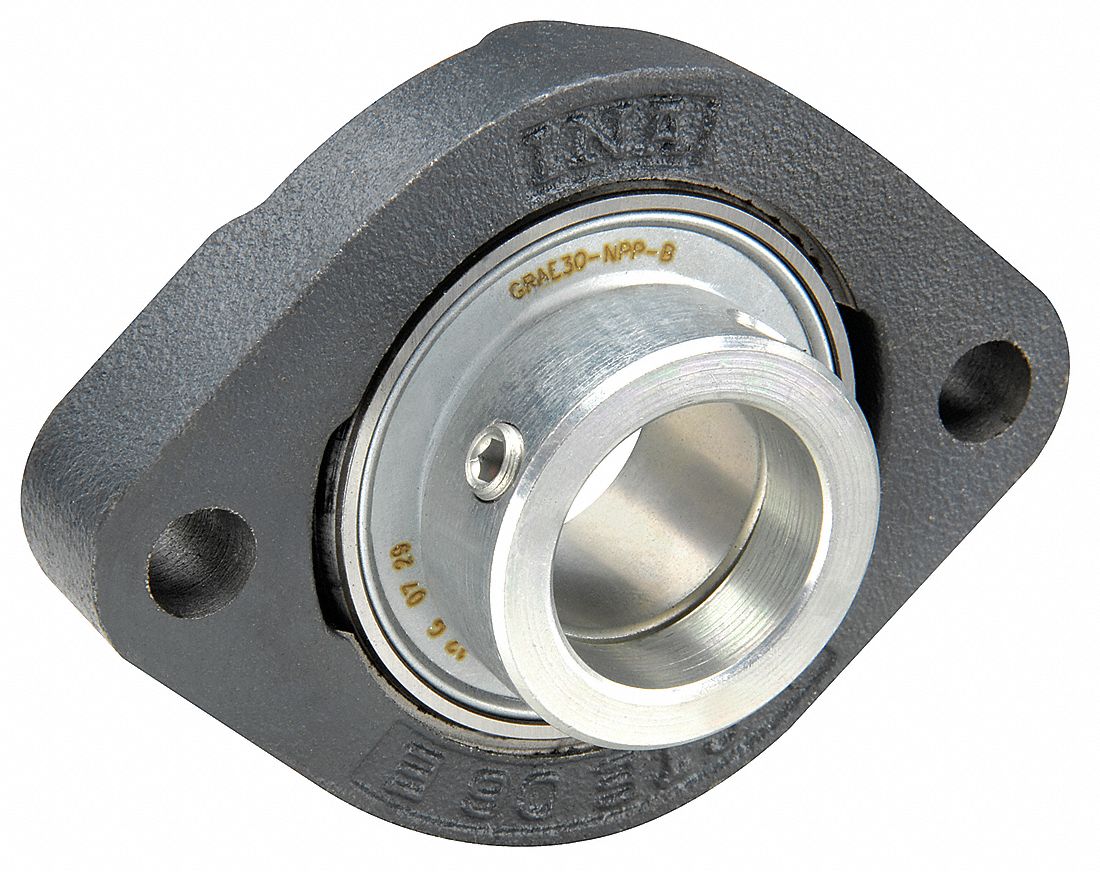

The INA 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 25 mm cylindrical bore and a cast iron housing that is not split. It features an eccentric collar, uses lithium complex grease as lubricant, and has a mounting bolt size of M8. The bearing measures 97 mm in length and 71 mm in height, and is supplied in metric dimensions under manufacturer part number GLCTE25-N.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 71 mm |
| Lg | 97 mm |
| Bore | 25 mm |
| Type | Cast Iron, Eccentric Collar |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M8 |
| System Of Measurement | Metric |
| Manufacturer Part Number | GLCTE25-N |
