Iptci Bearings 3G-OTH-104289 — Technical Specifications

Name: Iptci Bearings 3G-OTH-104289 IPTCI BEARINGS Pillow Block Bearing: 7/8 in Bore, SS, Set Screws, 1 7/16 in Shaft Ht, 210°F Max Temp (MPN SUCSP205-14 IP69K). Key specifications — Brand: IPTCI BEARINGS; Maximum Speed: 5,850 RPM Grease; Mounting Bolt Size: 3/8 in; Standards: AFBMA; System of Measurement: Inch.
Brand: Iptci Bearings

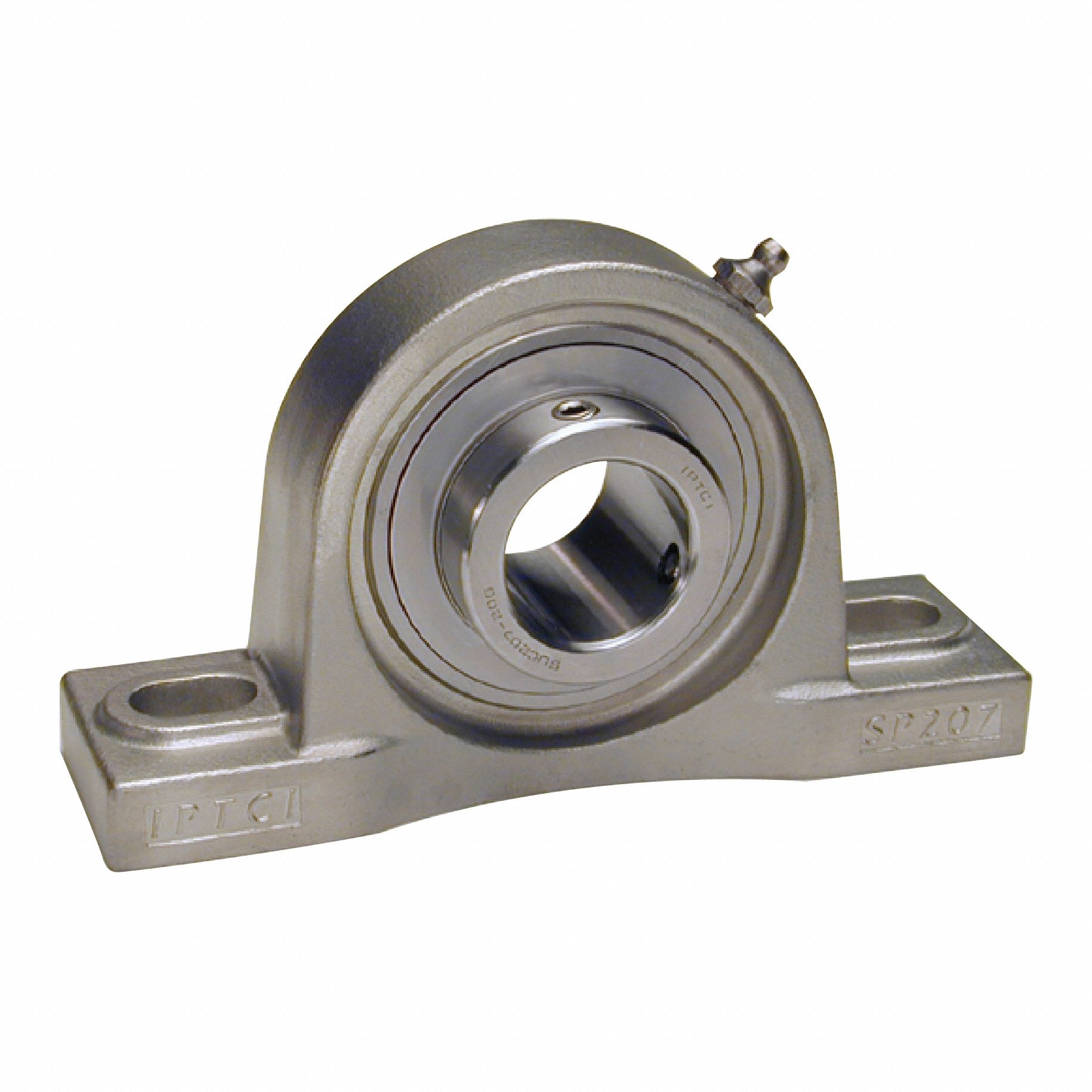

The IPTCI BEARINGS Pillow Block Bearing is a washdown pillow block ball bearing with a 7/8 in bore, constructed with stainless steel and set screws. It features a 1 7/16 in shaft height, a maximum temperature of 210°F, and a maximum speed of 5,850 RPM with grease. This inch-system bearing meets AFBMA standards, has a 3/8 in mounting bolt size, and is identified by manufacturer part number SUCSP205-14 IP69K.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SS, Set Screws
Brand	IPTCI BEARINGS
Max Temp	210°F
Shaft Ht	1 7/16 in
Standards	AFBMA
Maximum Speed	5,850 RPM Grease
Mounting Bolt Size	3/8 in
System Of Measurement	Inch
Manufacturer Part Number	SUCSP205-14 IP69K
