Iptci Bearings 3G-OTH-100026 — Technical Specifications

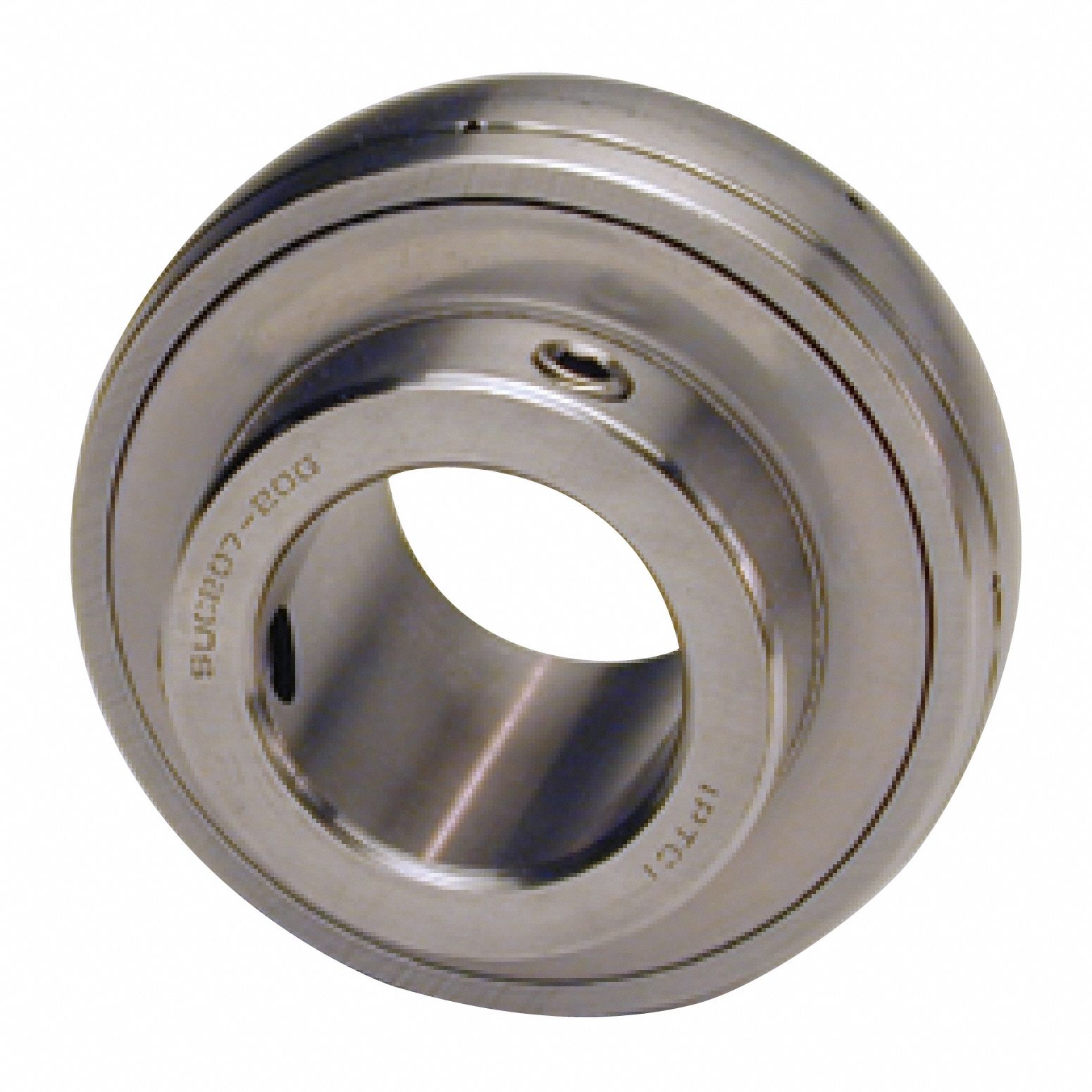

The IPTCI BEARINGS Insert Bearing SUCX07-23 is a food-grade spherical insert bearing with a ball insert type and double-sealed closure. It features a 1 7/16 in bore, 80 mm OD, and 0.826 in outer ring width, using an inch system of measurement. This bearing is identified by the manufacturer part number SUCX07-23 and bearing industry number SUCX07-23.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 80 mm |
| Bore | 1 7/16 in |
| Brand | IPTCI BEARINGS |
| Closure | Double Sealed |
| Outer Ring Wd | 0.826 in |
| Bearing Insert Type | Ball |
| System Of Measurement | Inch |
| Bearing Industry Number | SUCX07-23 |
| Manufacturer Part Number | SUCX07-23 |
