Jergens 3G-OTH-193508 — Technical Specifications

Name: Jergens 3G-OTH-193508 JERGENS Subplate: ZPS, Rectangular, Steel, 150 mm W x 300 mm L x 35 mm H, 28.67 lb Wt, 11 Studs (MPN 30120). Key specifications — attr1036219: Subplate; attr1036220: JERGENS; attr1091702: K10.3; attr1091714: (2) Low Pressure Pneumatic Clamping Modules.
Brand: Jergens

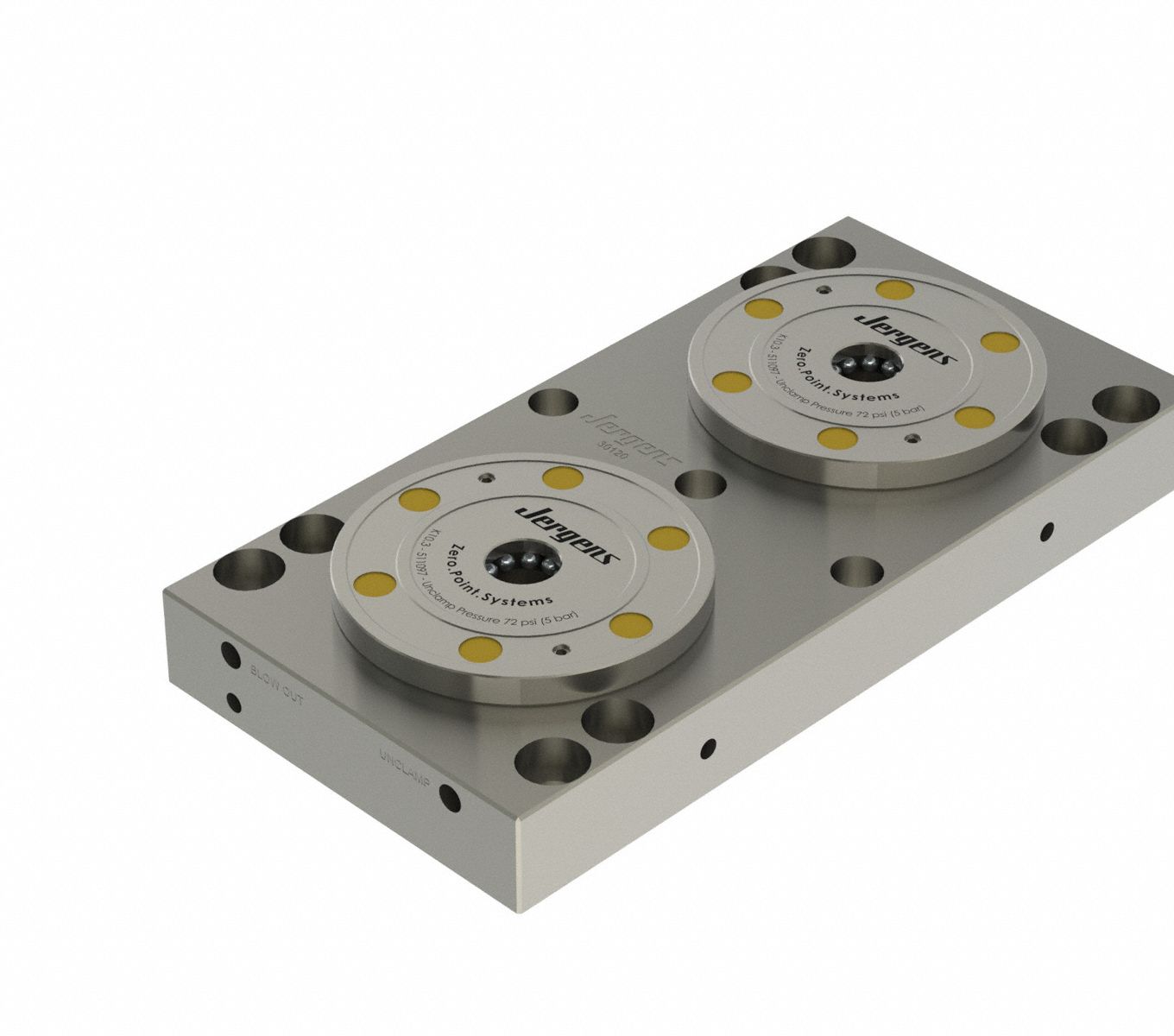

The JERGENS Subplate: ZPS (MPN 30120) is a Zero Point System Fixturing Subplate, model K10.3, constructed of steel with a rectangular shape measuring 150 mm W x 300 mm L x 35 mm H and weighing 28.67 lb. It includes 11 studs and is equipped with (2) Low Pressure Pneumatic Clamping Modules.

View Product & Quote

Technical Specifications

Parameter	Value
H	150 mm W x 300 mm L x 35 mm
Wt	28.67 lb
Type	Rectangular, Steel
Studs	11
Manufacturer Part Number	30120
