Johnson Controls 3G-OTH-436061 — Technical Specifications

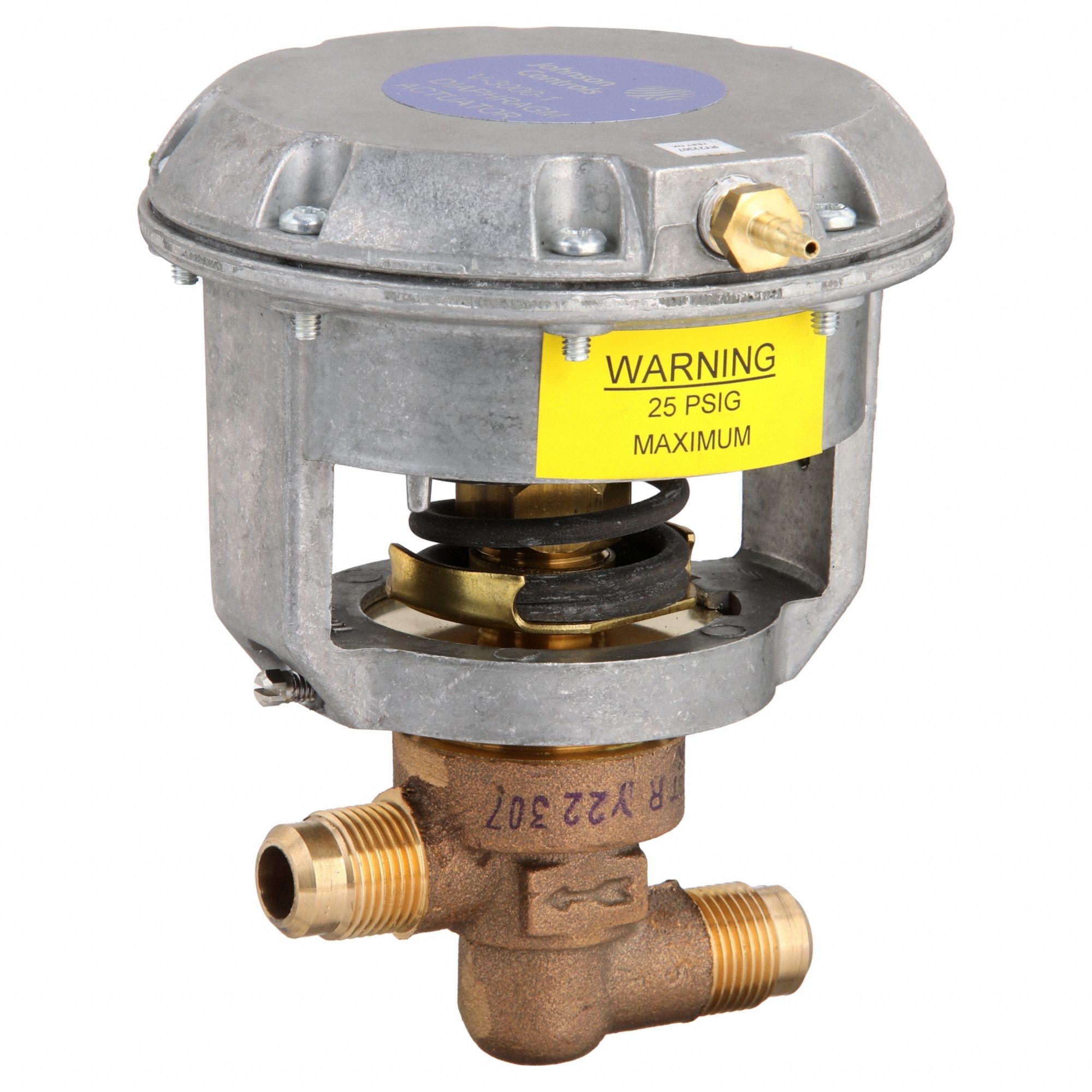

The JOHNSON CONTROLS Pneumatically Actuated Diaphragm Valve (MPN V-3766-1003) is a 2-way, metal diaphragm valve with a 1/2 in connection size and Flare x Flare connections. It features a single-acting spring return actuator with air-to-spring operation, a reinforced synthetic rubber diaphragm, and is designed for water media.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Brass, 2-Way, Flare x Flare |
| Brand | JOHNSON CONTROLS |
| For Media | Water |
| Actuator Type | Single-Acting Spring Return |
| Connection Type | Flare x Flare |
| Actuator Operation | Air to Spring |
| Diaphragm Material | Reinforced Synthetic Rubber |
| Diaphragm Valve Type | 2-Way |
| Connection Type-Side 1 | Flare |
| Connection Type - Side 2 | Flare |
| Manufacturer Part Number | V-3766-1003 |
