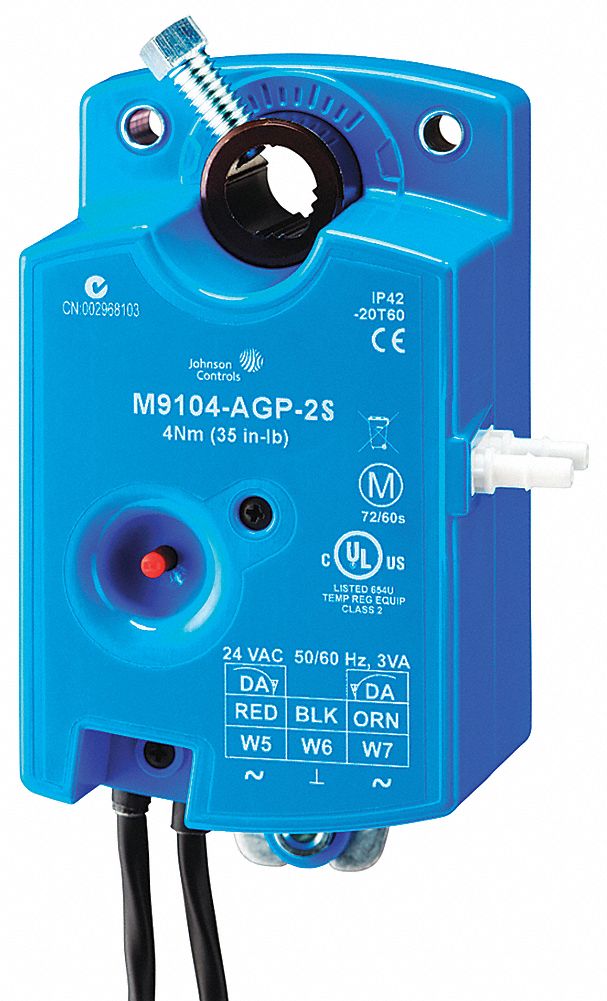

Johnson Controls 3G-OTH-67025 — Technical Specifications

Name: Johnson Controls 3G-OTH-67025 Actuator: VAV Boxes, Floating Point, Non-Spring Return, 35 in-lb, 20 to 30V AC, Hardwired (MPN M9104-AGP-2S). Key specifications — Manufacturer Part Number: M9104-AGP-2S; Shaft Type: Self-Centering; Shaft Rotation: CW/CCW; Stroke Degree: 93°; Power Rating: 2.1W; Input Voltage: 20 to 30V AC; Brand: JOHNSON CONTROLS; For Use With Building Automation Systems: Building Automation System Compatible.
Brand: Johnson Controls

The JOHNSON CONTROLS M9104-AGP-2S is a non-fail-safe actuator for VAV boxes, featuring a self-centering shaft with CW/CCW rotation and a 93° stroke. It operates on 20 to 30V AC input with a 2.1W power rating and is hardwired for building automation system compatibility.

View Product & Quote

Technical Specifications

Parameter	Value
AC	20 to 30V
Type	Floating Point, Non-Spring Return, 35 in-lb, Hardwired
Brand	JOHNSON CONTROLS
Shaft Type	Self-Centering
Power Rating	2.1W
Input Voltage	20 to 30V AC
Stroke Degree	93°
Shaft Rotation	CW/CCW
Manufacturer Part Number	M9104-AGP-2S
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
For Use With Building Automation Systems	Building Automation System Compatible
