Johnson Controls 3G-OTH-67269 — Technical Specifications

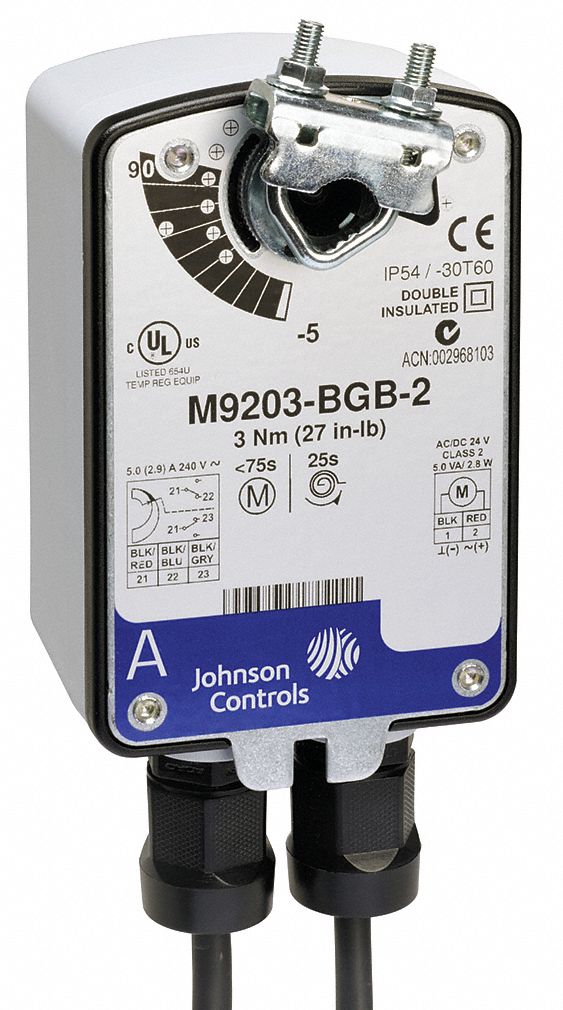

The JOHNSON CONTROLS M9203-BGB-2 is a fail-safe spring return damper actuator with on/off control, delivering 27 in-lb of torque. It operates on 24V AC/DC with a 2.8W power rating, features a 95° stroke with CW/CCW shaft rotation, and includes an auxiliary switch. This plenum-rated actuator is hardwired and compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | On/Off, Spring Return, 27 in-lb, Hardwired Plenum Rated Cables |
| AC/DC | 24V |
| Brand | JOHNSON CONTROLS |
| Power Rating | 2.8W |
| Input Voltage | 24V AC/DC |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | M9203-BGB-2 |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
