Johnson Controls 3G-OTH-67399 — Technical Specifications

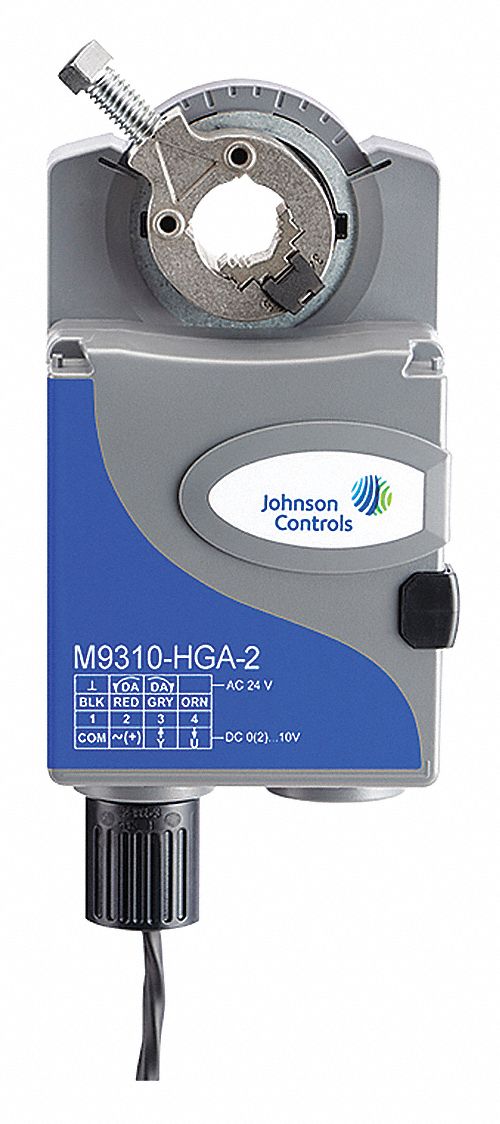

The JOHNSON CONTROLS M9310-HGA-2 is a non-fail-safe damper actuator with a 1.3W power rating and 24V AC/DC input. It provides a 0 to 10V DC output signal, supports floating point/on/off/proportional control, and offers a stroke degree of 35 to 95° with CW/CCW shaft rotation. This IP54-rated actuator includes an auxiliary switch, is hardwired, and is compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Floating Point/On/Off/Proportional, Non-Spring Return, 89 in-lb, IP54 |
| AC/DC | 24V |
| Brand | JOHNSON CONTROLS |
| Power Rating | 1.3W |
| Input Voltage | 24V AC/DC |
| Output Signal | 0 to 10V DC |
| Stroke Degree | 35 to 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | M9310-HGA-2 |
| Auxiliary Switch Included | Yes |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
