Johnson Controls 3G-OTH-68515 — Technical Specifications

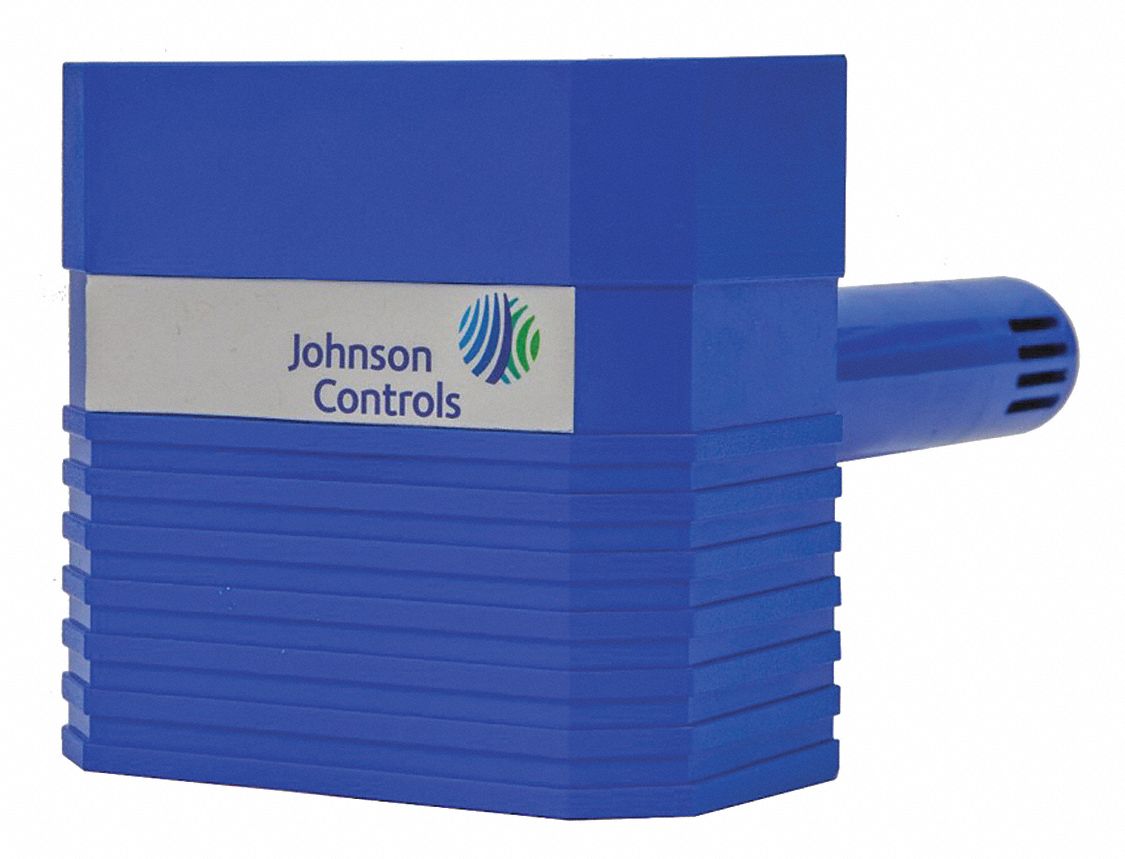

The JOHNSON CONTROLS HE-69130NP-0 is a duct-mounted temperature and humidity sensor with a plastic housing and no display. It provides a humidity output of 0 to 10V DC, with a temperature accuracy of ±0.34°F and a relative humidity range of 20 to 80% (±3% of Full Scale). The sensor includes a Certificate of Calibration Conformance and uses screw terminals for electrical connection, making it compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 32°F to 131°F, Plastic, Single Measurement, Plastic |
| Brand | JOHNSON CONTROLS |
| Display | No Display |
| Housing | Plastic |
| Includes | Test and Calibration Equipment Certificate of Calibration Conformance |
| Product Type | Duct Temperature and Humidity Sensor |
| Humidity Output | 0 to 10V DC |
| Mounting Location | Duct Mount |
| Temperature Accuracy | ±0.34°F |
| Relative Humidity Range | 20 to 80% |
| Manufacturer Part Number | HE-69130NP-0 |
| Electrical Connection Type | Screw Terminals |
| Relative Humidity Accuracy | ±3% of Full Scale |
| For Use With Building Automation Systems | Building Automation System Compatible |
