Johnson Controls 3G-OTH-68444 — Technical Specifications

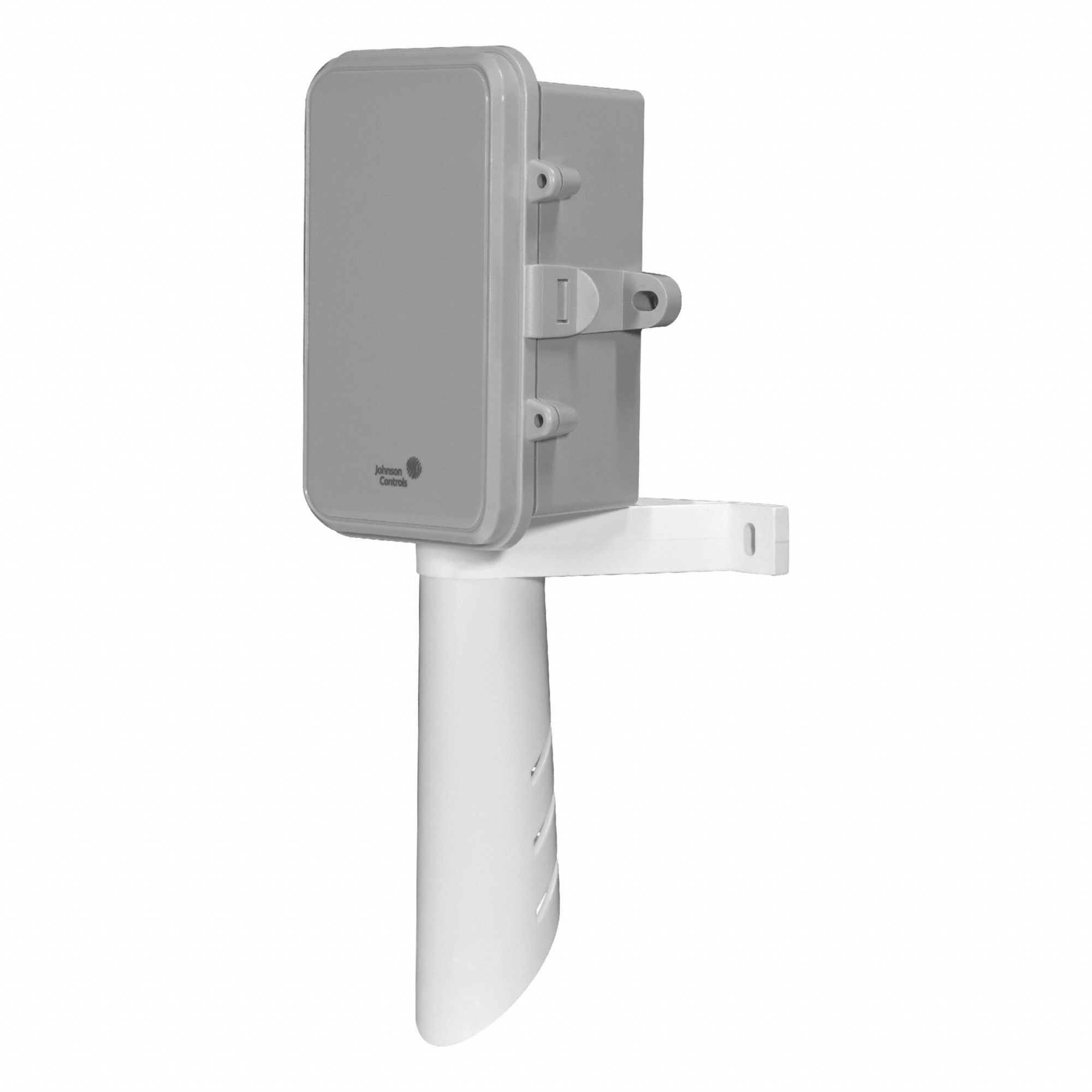

The JOHNSON CONTROLS HX-68P3-0N000U is an outdoor temperature and humidity sensor in a standard plastic housing for wall-mount installation. It provides a temperature signal via a 600 ohm thermistor with 0 to 10VDC and 4 to 20mA outputs, offering an accuracy of ±0.54°F, and measures relative humidity from 0 to 100% with an accuracy of ±3% of full scale. The sensor includes a cable gland, uses screw terminals for electrical connection, and is compatible with BACnet IP protocols, though it is not designed for building automation system compatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Std Housing, -40°F to 140°F, 0 to 10VDC, 4 to 20mA |
| Brand | JOHNSON CONTROLS |
| Display | No Display |
| Housing | Plastic |
| Includes | Cable Gland |
| Housing Type | Standard Housing |
| Product Type | Outdoor Temperature and Humidity Sensor |
| Mounting Location | Wall Mount |
| Temperature Signal | 600 ohm Thermistor 0 to 10VDC, 4 to 20mA |
| Temperature Accuracy | ±0.54°F |
| Relative Humidity Range | 0 to 100% |
| Manufacturer Part Number | HX-68P3-0N000U |
| Temperature Signal Output | 0 to 10VDC, 4 to 20mA |
| Electrical Connection Type | Screw Terminals |
| Relative Humidity Accuracy | ±3% of Full Scale |
| Compatible Building Automation Protocols | BACnet IP |
| For Use With Building Automation Systems | Not Building Automation System Compatible |
