Jw Winco 3G-OTH-517794 — Technical Specifications

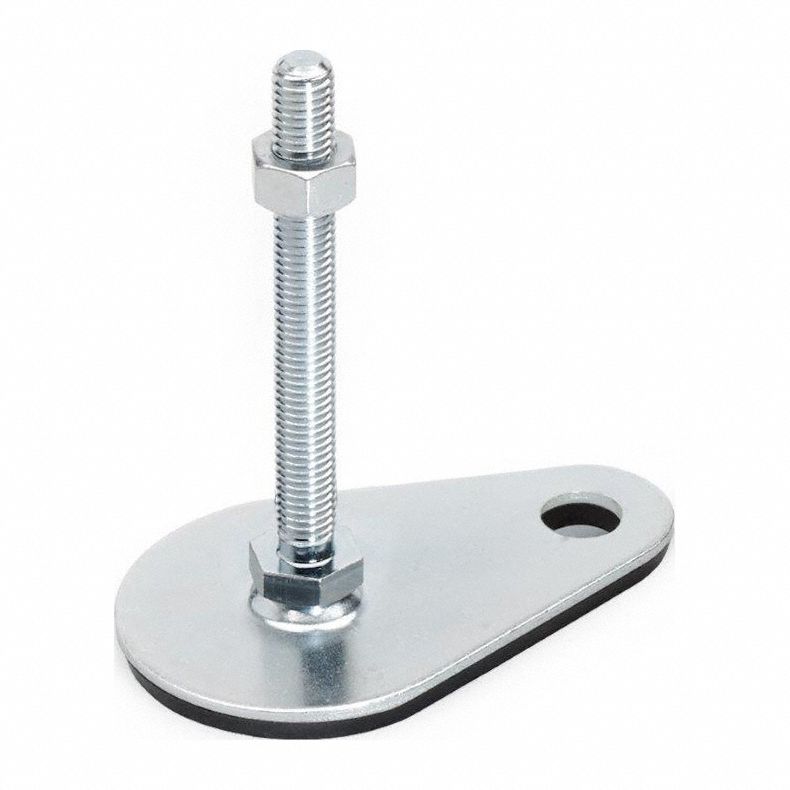

The JW WINCO Male-End Leveling Mount (SKU 805WX8, MPN 42-50-3/8X16-100-A3-SK) is a non-skid male leveling mount with a swiveling stud, 3/8"-16 thread size, and 1,798 lbf capacity. It features a teardrop base shape, Buna-N thrust pad, includes a nut, and has an 11/16 in hex size with mounting holes included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1,798 lbf Capacity |
| Hex Size | 11/16 in |
| Includes | Nut |
| Base Shape | Teardrop |
| Thread Size | 3/8"-16 |
| Load Capacity | 1,798 lbf |
| Mounting Holes | Mounting Holes Included |
| Thrust Pad Material | Buna-N |
| Manufacturer Part Number | 42-50-3/8X16-100-A3-SK |
