Jw Winco 3G-OTH-517875 — Technical Specifications

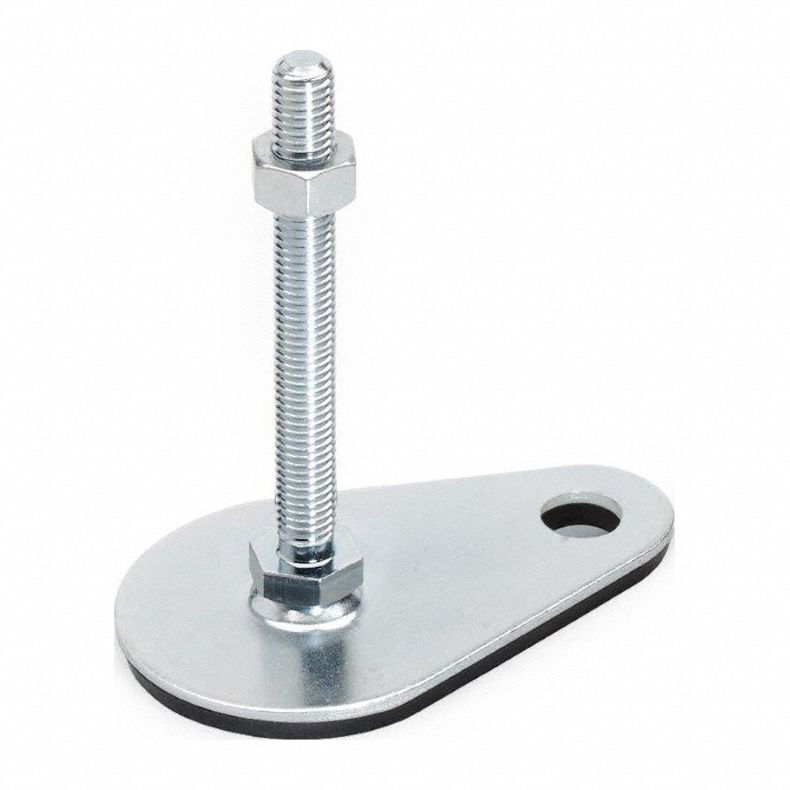

The JW WINCO Male-End Leveling Mount: Swiveling Stud is a non-skid male leveling mount with a 2,698 lbf capacity and 1/2"-13 thread size. It features a teardrop base shape, Buna-N thrust pad, and includes a nut with an 11/16 in hex size. Mounting holes are included for installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 2,698 lbf Capacity |
| Hex Size | 11/16 in |
| Includes | Nut |
| Base Shape | Teardrop |
| Thread Size | 1/2"-13 |
| Load Capacity | 2,698 lbf |
| Mounting Holes | Mounting Holes Included |
| Thrust Pad Material | Buna-N |
| Manufacturer Part Number | 42-80-1/2X13-75-A3-SK |
