Jw Winco 3G-OTH-517662 — Technical Specifications

Name: Jw Winco 3G-OTH-517662 JW WINCO Male-End Leveling Mount: Swiveling Stud, 3/4"-10 Thread Size, 3 3/20 in, 4,496 lbf Capacity (MPN 43-80-3/4X10-100-G3-UK). Key specifications — Finish: Plain; Base Shape: Rectangular; Load Capacity: 4,496 lbf; Thrust Pad Material: Buna-N; Mounting Holes: Mounting Holes Included; Includes: Rubber Pad; Base Width: 3-3/20 in.
Brand: Jw Winco

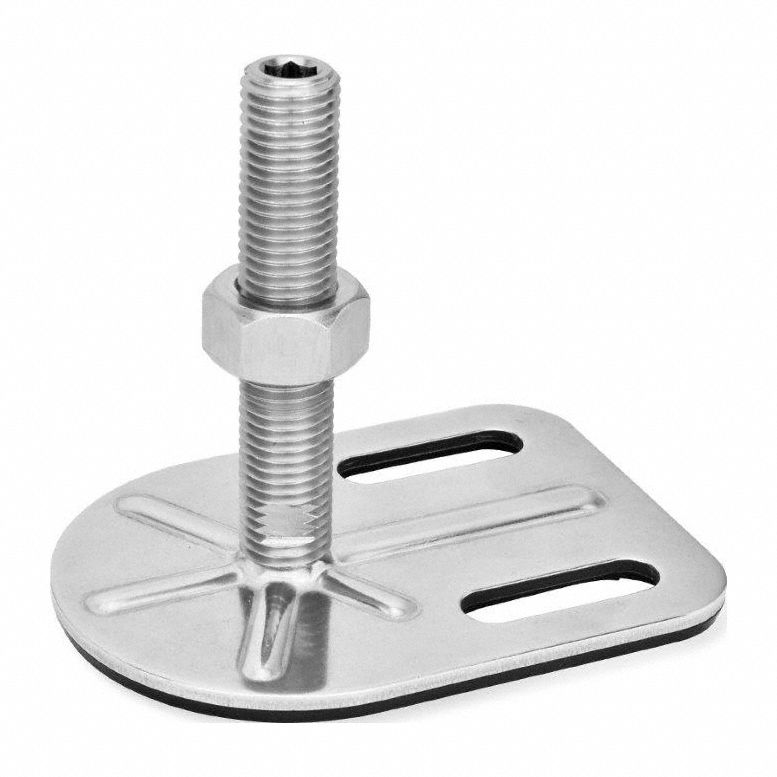

The JW WINCO Male-End Leveling Mount is a non-skid leveling mount with a swiveling stud, featuring a 3/4"-10 thread size and a load capacity of 4,496 lbf. It has a rectangular base with a width of 3-3/20 in, a plain finish, and includes a rubber pad with a Buna-N thrust pad. Mounting holes are included for installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	3 3/20 in, 4,496 lbf Capacity
Finish	Plain
Includes	Rubber Pad
Base Shape	Rectangular
Base Width	3-3/20 in
Thread Size	3/4"-10
Load Capacity	4,496 lbf
Mounting Holes	Mounting Holes Included
Thrust Pad Material	Buna-N
Manufacturer Part Number	43-80-3/4X10-100-G3-UK
