Jw Winco 3G-OTH-522220 — Technical Specifications

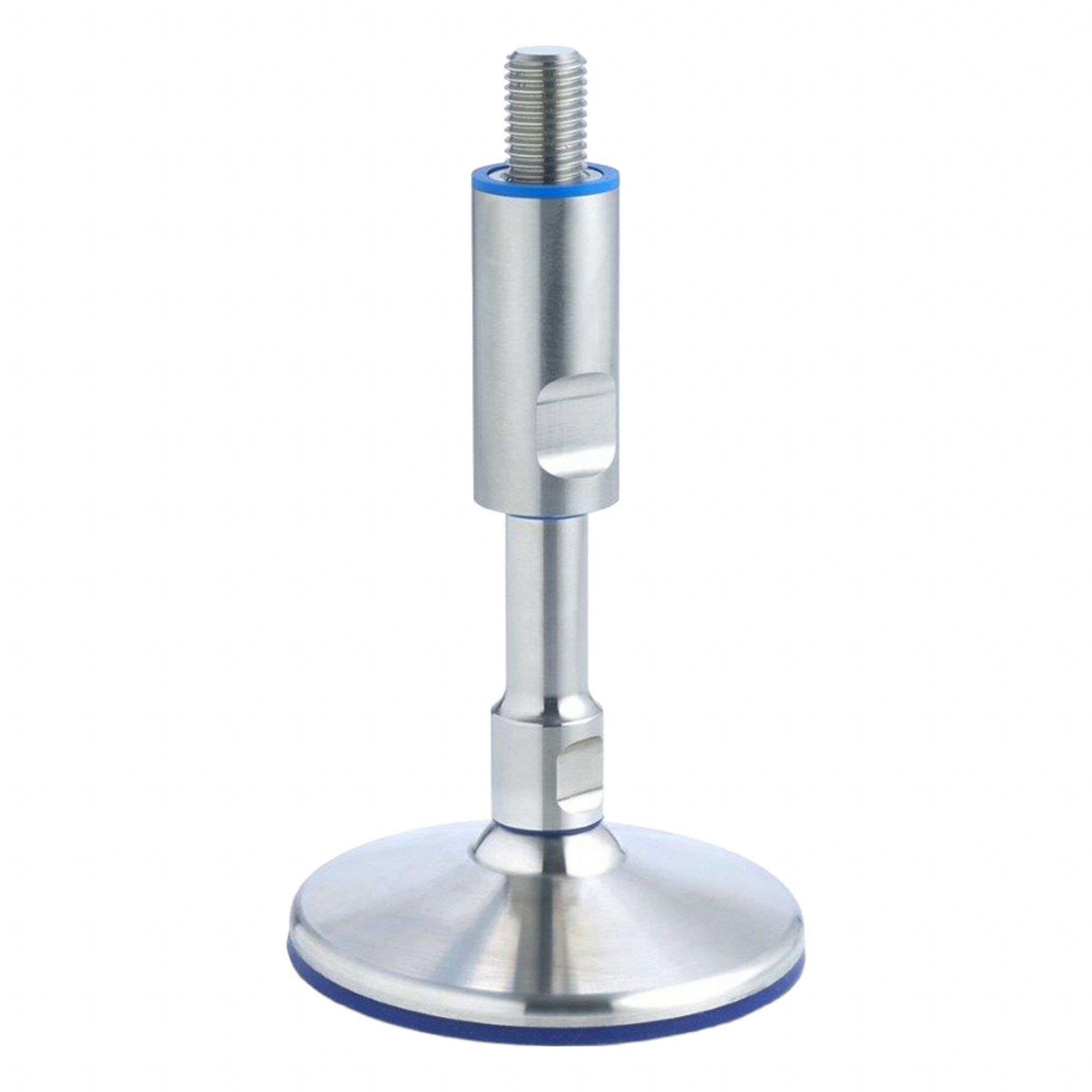

The JW WINCO Male-End Leveling Mount (MPN 20-120-M20-235-A) is a hygienic male leveling mount with an M20 thread size, 120 mm length, and 47 kN capacity. It features a round base, a 27 mm sleeve hex size, and includes an adjustable sleeve with an FDA-compliant wiper and sealing ring. Mounting holes are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M20 Thread Size, 120 mm |
| Capacity | 47 kN |
| Hex Size | 27 mm (Sleeve) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 47 kN |
| Mounting Holes | Mounting Holes Not Included |
| Manufacturer Part Number | 20-120-M20-235-A |
