Jw Winco 3G-OTH-522187 — Technical Specifications

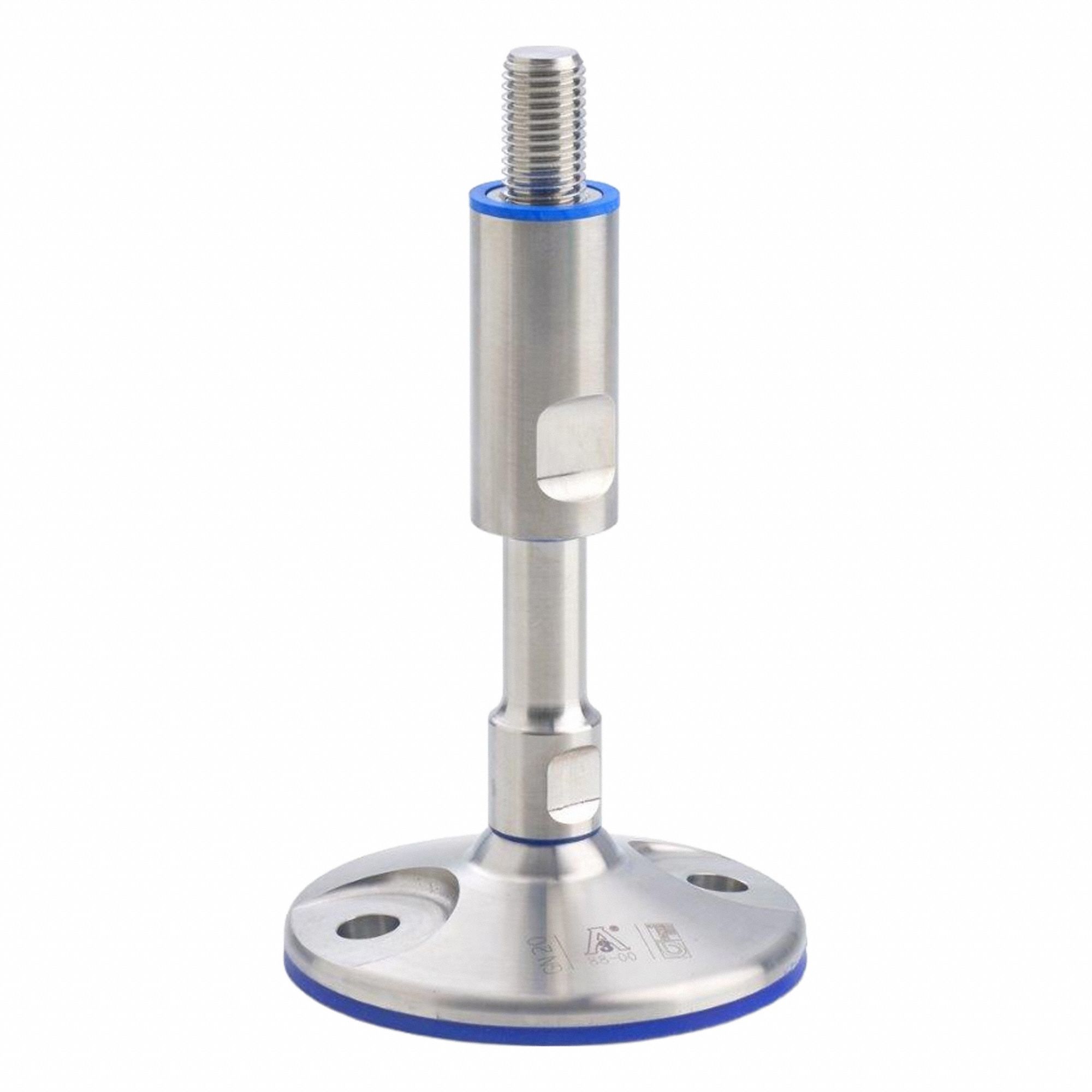

The JW WINCO Male-End Leveling Mount is a hygienic male leveling mount with a swiveling stud, M12 thread size, 80 mm length, and 16 kN capacity. It features a round base, mounting holes, and an adjustable sleeve with an FDA-compliant wiper and sealing ring, with a 19 mm sleeve hex size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 Thread Size, 80 mm |
| Capacity | 16 kN |
| Hex Size | 19 mm (Sleeve) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 16 kN |
| Mounting Holes | Mounting Holes Included |
| Manufacturer Part Number | 20-80-M12-225-B |
