Jw Winco 3G-OTH-522354 — Technical Specifications

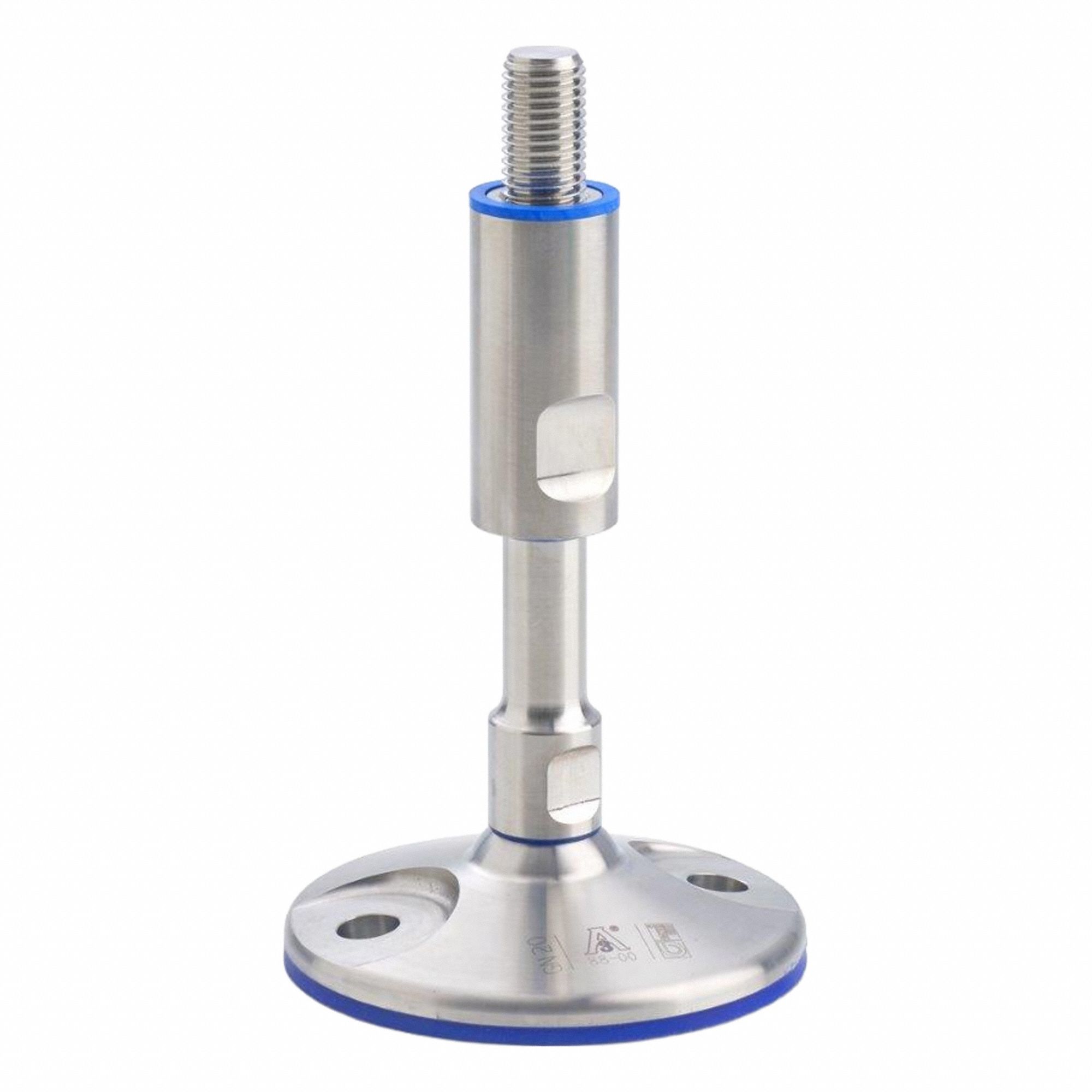

The JW WINCO Male-End Leveling Mount is a hygienic male leveling mount with a swiveling stud, M20 thread size, 100 mm length, and 47 kN capacity. It includes an adjustable sleeve with an FDA-compliant wiper and sealing ring, a round base, mounting holes, and a 27 mm sleeve hex size (MPN 20-100-M20-235-B).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M20 Thread Size, 100 mm |
| Capacity | 47 kN |
| Hex Size | 27 mm (Sleeve) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 47 kN |
| Mounting Holes | Mounting Holes Included |
| Manufacturer Part Number | 20-100-M20-235-B |
