Jw Winco 3G-OTH-522233 — Technical Specifications

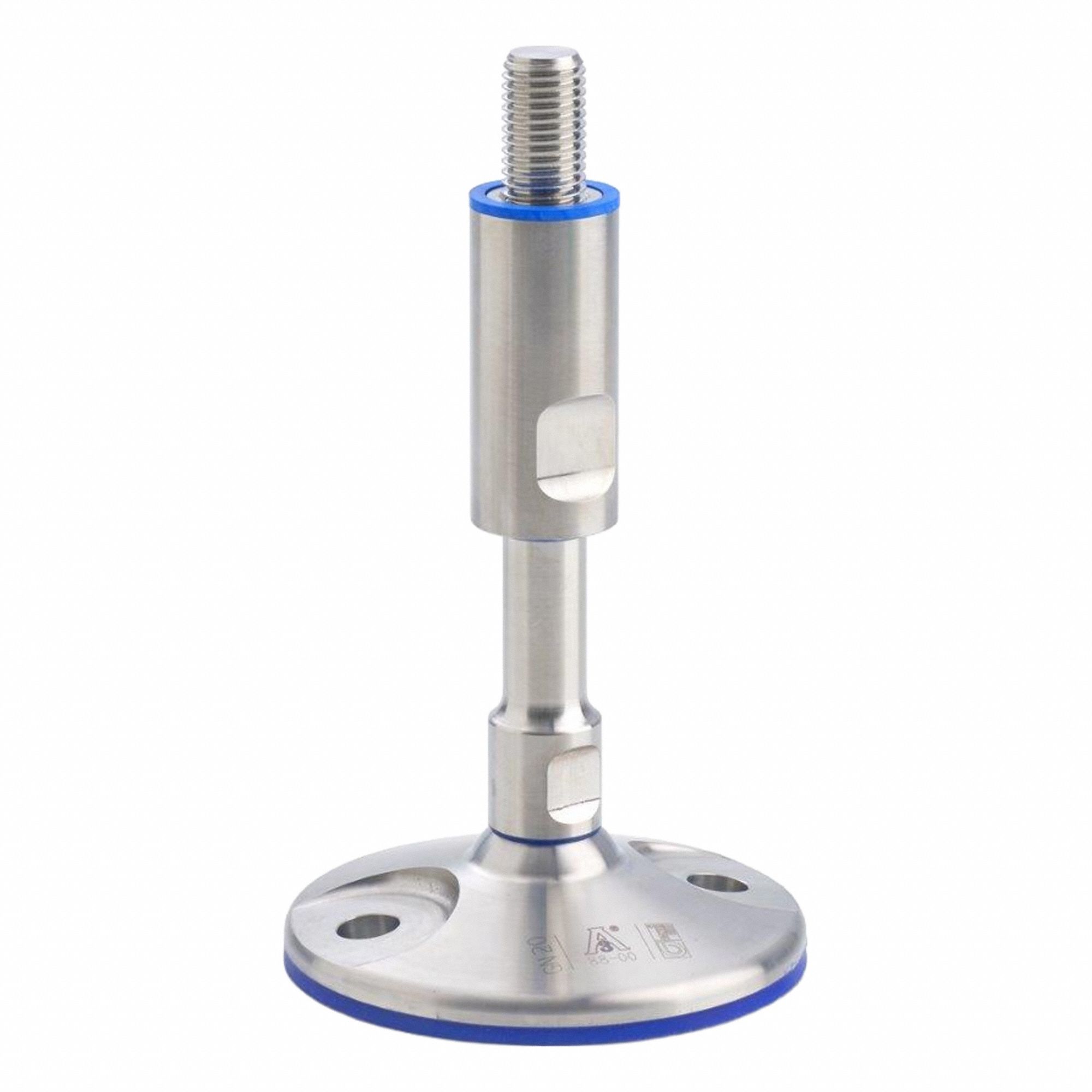

The JW WINCO Male-End Leveling Mount is a hygienic male leveling mount with a swiveling stud, featuring an M24 thread size and 120 mm length. It supports a 67 kN load capacity and includes an adjustable sleeve with an FDA-compliant wiper and sealing ring, along with a 30 mm hex sleeve and mounting holes.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M24 Thread Size, 120 mm |
| Capacity | 67 kN |
| Hex Size | 30 mm (Sleeve) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 67 kN |
| Mounting Holes | Mounting Holes Included |
| Manufacturer Part Number | 20-120-M24-235-B |
