Jw Winco 3G-OTH-515070 — Technical Specifications

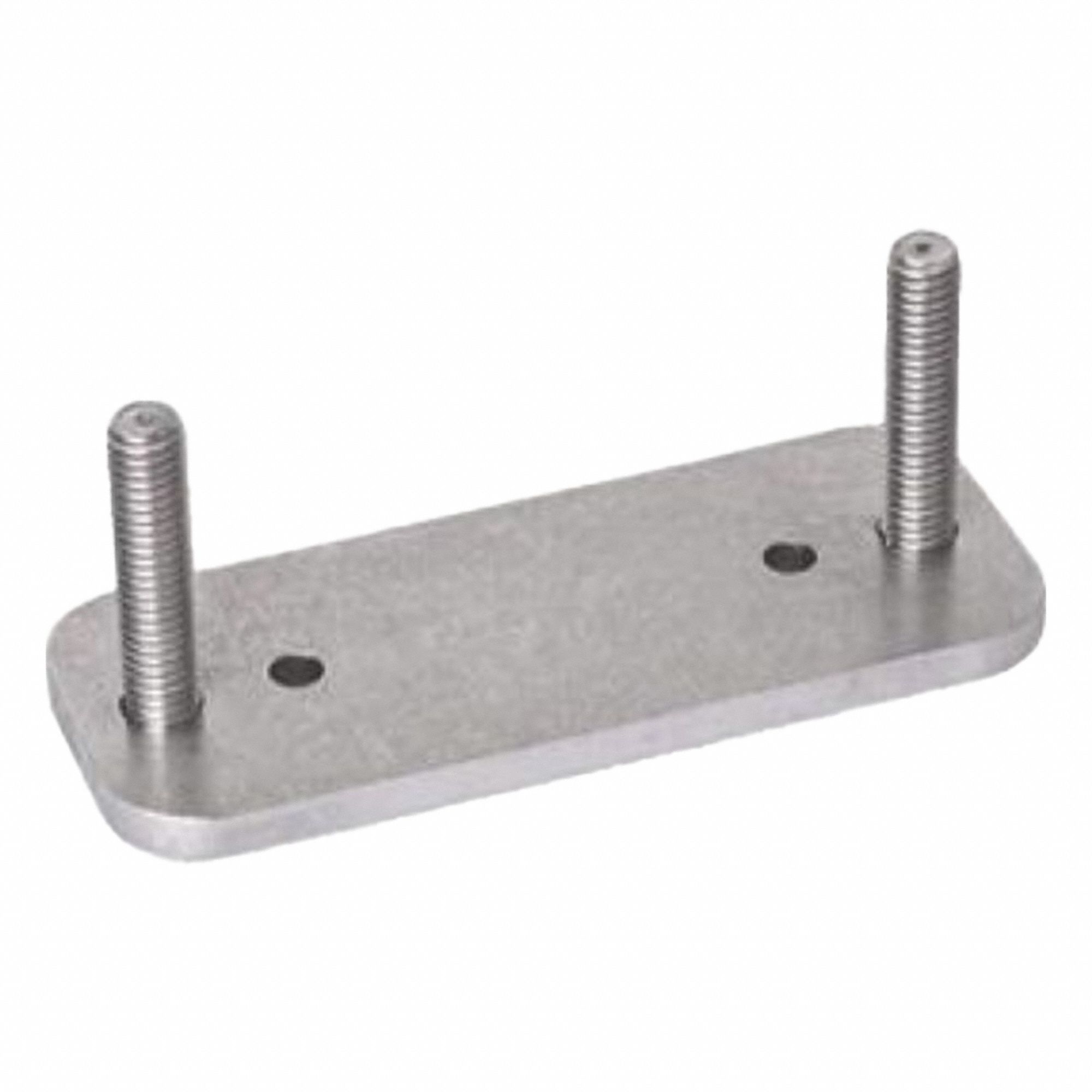

The JW WINCO Mounting Plate is a stainless steel spacer and mounting plate for concealed hinges, featuring a tumbled matte finish, 4 mm plate thickness, and M6 mounting thread size. Made from AISI 304 stainless steel, it is compatible with the JW Winco GN 7243 series.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Tumbled Matte, M6 Mounting Thread Size |
| Brand | JW WINCO |
| Finish | Tumbled |
| Material | Stainless Steel |
| Plate Thick | 4 mm |
| Compatible Brand | JW Winco |
| Compatible Series | GN 7243 |
| Body Material Grade | AISI 304 |
| Mounting Thread Size | M6 |
| Manufacturer Part Number | 7247.6-NI-60-20-MT |
