Kerick 3G-OTH-450059 — Technical Specifications

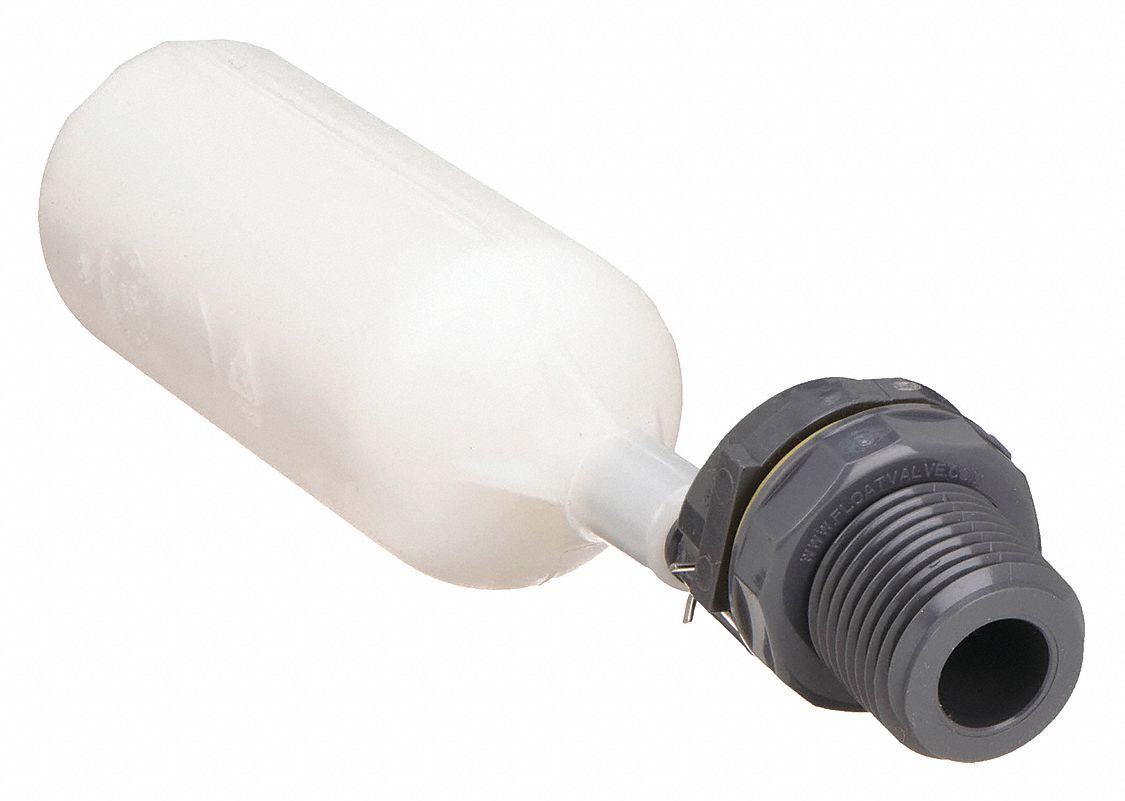

The KERICK M052 Float Valve Assembly is a general service float valve assembly for water media, featuring an angle valve body with a bulkhead mounting and a fixed arm. It includes a float and rod, has a 1.3 gpm flow rate at 40 psi, and uses a Santoprene rubber seal. The inlet connection is 1/2" male NPT, and the assembly is NSF 61 certified for food and drinking water.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Cylindrical, Bulkhead, PVC, MNPT, M |
| Brand | KERICK |
| Mounting | Bulkhead |
| Flow Rate | 1.3 gpm @ 40 psi |
| For Media | Water |
| Valve Series | M |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Fixed |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Connection Type - Side 1 | NPT |
| Manufacturer Part Number | M052 |
| Connection Gender - Side 1 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
