Kerick 3G-OTH-438781 — Technical Specifications

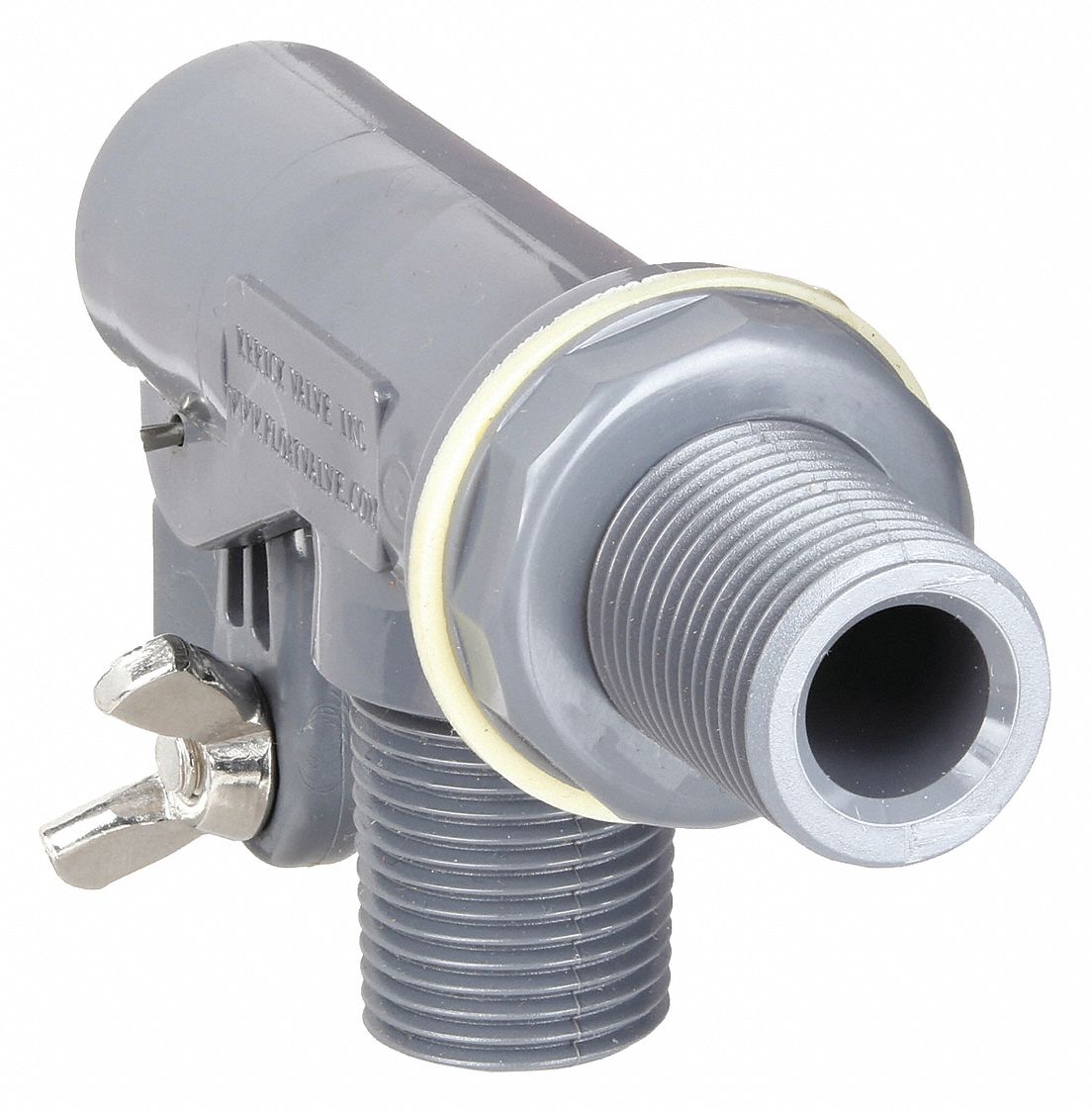

The KERICK PT3838187 is a general service float valve body for water media, featuring an angle valve body style with bulkhead mounting. It has a flow rate of 7.2 gpm at 60 psi, a 1/4"-20 rod thread, and Santoprene rubber seal material. The valve body includes adjustable arm and 3/8" MNPT inlet and outlet connections, complying with Standard 169 and NSF 61 certification.
Technical Specifications
| Parameter | Value |
|---|---|
| MNPT | 3/8 in |
| Type | Angle Valve Body, Float Valve Body, Bulkhead, PVC |
| Brand | KERICK |
| Mounting | Bulkhead |
| Flow Rate | 7.2 gpm @ 60 psi |
| For Media | Water |
| Standards | Standard 169 |
| Rod Thread | 1/4"-20 |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | No Float and Rod |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | PT3838187 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
