Kerick 3G-OTH-436099 — Technical Specifications

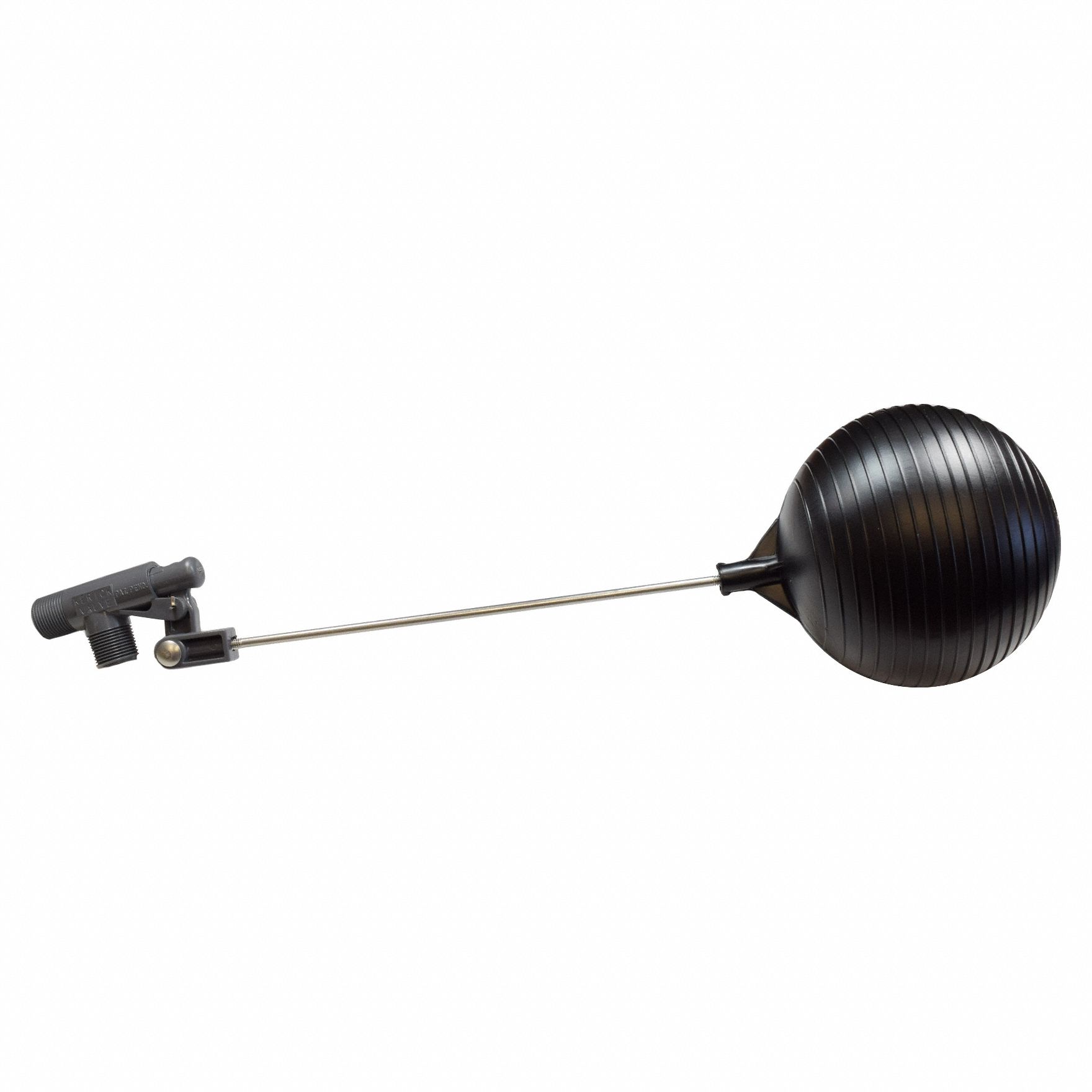

The KERICK Float Valve Assembly (SKU 803HK0, MPN PS75SS-5) is a food grade and sanitary float valve assembly for water media, featuring an angle valve body with adjustable arm and horizontal piping mounting. It includes a float and rod with a 1/4"-20 rod thread, Santoprene rubber seal, and male NPT inlet and outlet connections. The assembly delivers a flow rate of 27.5 gpm @ 30 psi and is NSF 61 certified for food and drinking water, meeting Standard 169.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Cylindrical, Horizontal Piping, PVC |
| Brand | KERICK |
| Mounting | Horizontal Piping |
| Flow Rate | 27.5 gpm @ 30 psi |
| For Media | Water |
| Standards | Standard 169 |
| Rod Thread | 1/4"-20 |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | PS75SS-5 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
