Kmc Controls 3G-OTH-67152 — Technical Specifications

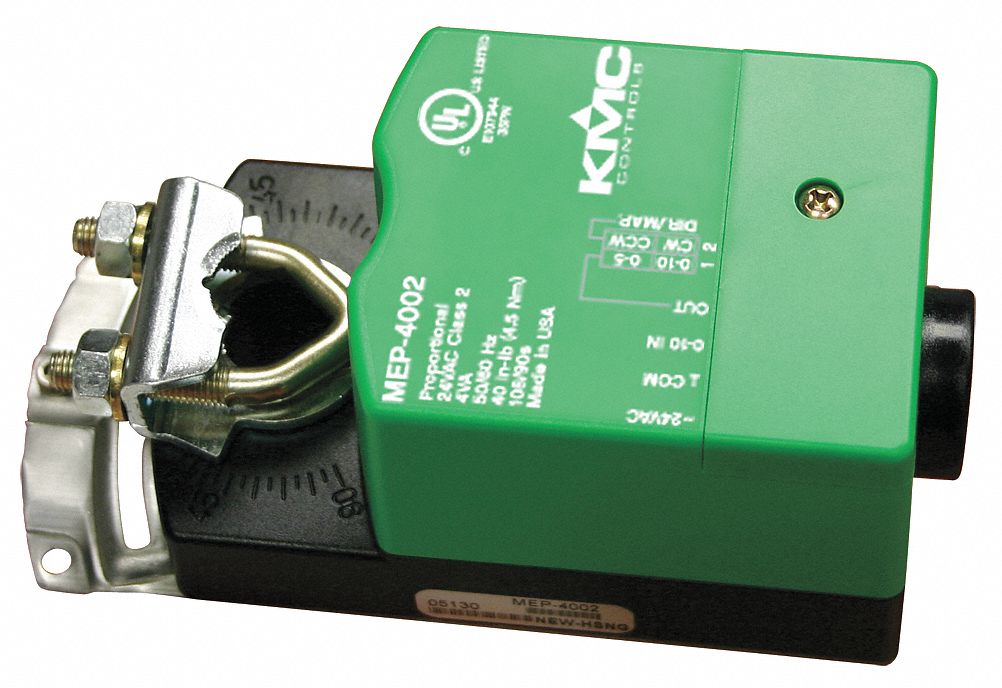

The KMC CONTROLS MEP-4002 is a non-fail-safe actuator for dampers, valves, and VAV boxes. It operates on 24V AC with a 0 to 10V DC output signal, providing a 0 to 95° stroke and CW/CCW shaft rotation. This hardwired, proportional, non-spring return actuator delivers 40 in-lb of torque and is compatible with building automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 24V |
| Type | Proportional, Non-Spring Return, 40 in-lb, Hardwired |
| Brand | KMC CONTROLS |
| Input Voltage | 24V AC |
| Output Signal | 0 to 10V DC |
| Stroke Degree | 0 to 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MEP-4002 |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
