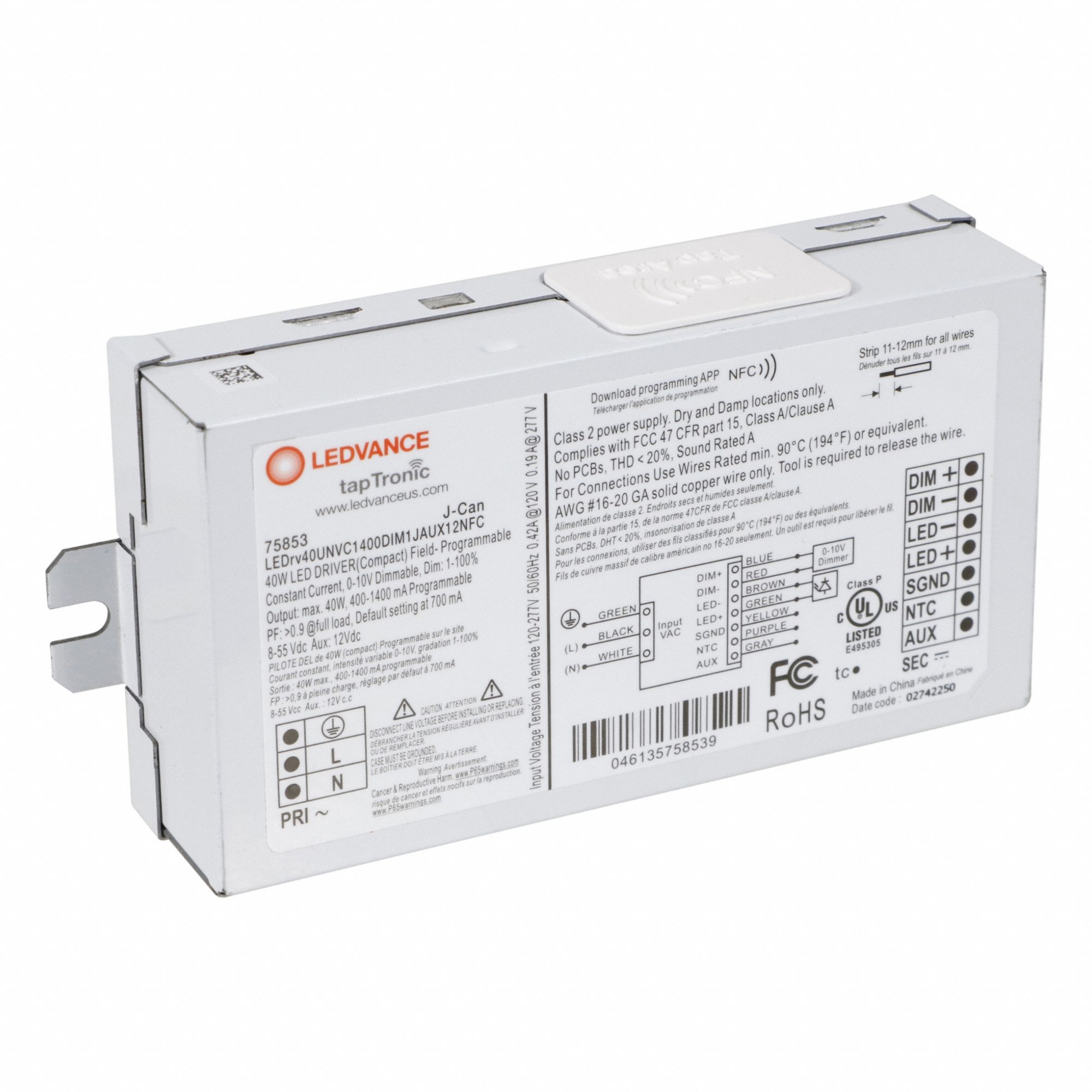

Ledvance 3G-OTH-383309 — Technical Specifications

Name: Ledvance 3G-OTH-383309 LEDVANCE LED Driver: Class 2, 40 W Max. Power Output, 120 to 277V AC, 8 to 55V DC, 400 to 1,400 mA (MPN LEDrv40UNVC1400DIM1JAUX12NFC). Key specifications — Brand: LEDVANCE; Output Voltage: 8 to 55V DC; Dimming Method: 0-10V; Output Current: 400 to 1,400 mA.
Brand: Ledvance

The LEDVANCE LED Driver: Class 2 is an app-programmable driver with a 40 W max power output, operating on 120 to 277V AC input. It delivers an output voltage of 8 to 55V DC and an output current of 400 to 1,400 mA, utilizing a 0-10V dimming method. This driver is designed for industrial lighting applications requiring programmable control.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120 to 277V
DC	8 to 55V
Type	400 to 1,400 mA
Brand	LEDVANCE
Dimming Method	0-10V
Output Current	400 to 1,400 mA
Output Voltage	8 to 55V DC
Max. Power Output	40 W
Manufacturer Part Number	LEDrv40UNVC1400DIM1JAUX12NFC
