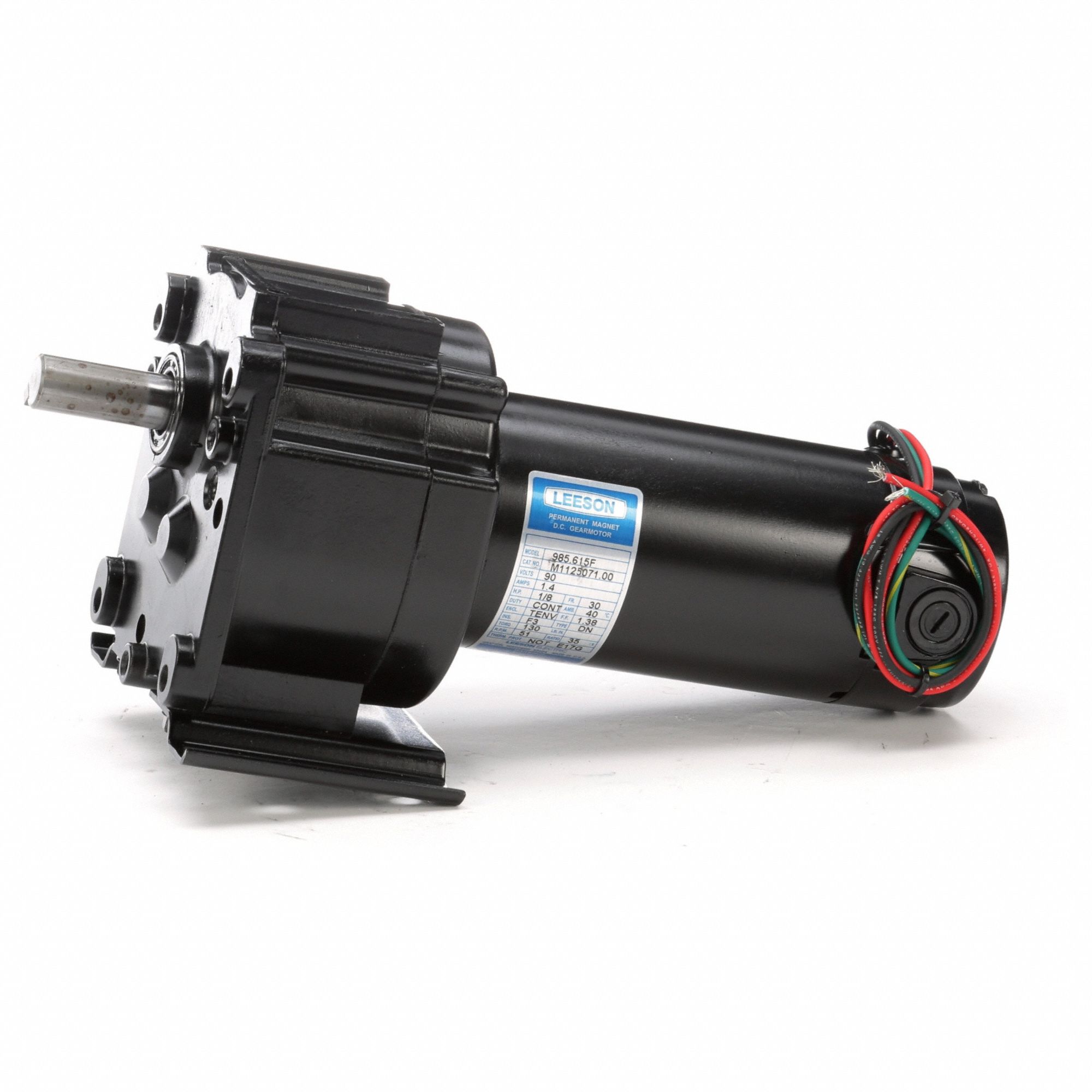

Leeson 3G-OTH-121483 — Technical Specifications

Name: Leeson 3G-OTH-121483 LEESON DC Gearmotor: Parallel, 90V DC, TENV, 51 RPM, 130 in-lb Max Torque, 35:1, 1.4 A, CW/CCW (MPN M1125071.00). Key specifications — Motor Type: Permanent Magnet DC; Brand: LEESON; Full Load Current: 1.4 A.
Brand: Leeson

The LEESON DC Gearmotor: Parallel is a parallel shaft DC gearmotor from LEESON, featuring a Permanent Magnet DC motor type. It operates at 90V DC with a TENV enclosure, delivering 51 RPM and a maximum torque of 130 in-lb, with a 35:1 gear ratio and a full load current of 1.4 A. This unit supports CW/CCW rotation and is identified by manufacturer part number M1125071.00.

View Product & Quote

Technical Specifications

Parameter	Value
DC	90V
Type	TENV, 51 RPM, 130 in-lb Max Torque, 1.4 A, CW/CCW
Brand	LEESON
Motor Type	Permanent Magnet DC
Full Load Current	1.4 A
Manufacturer Part Number	M1125071.00
