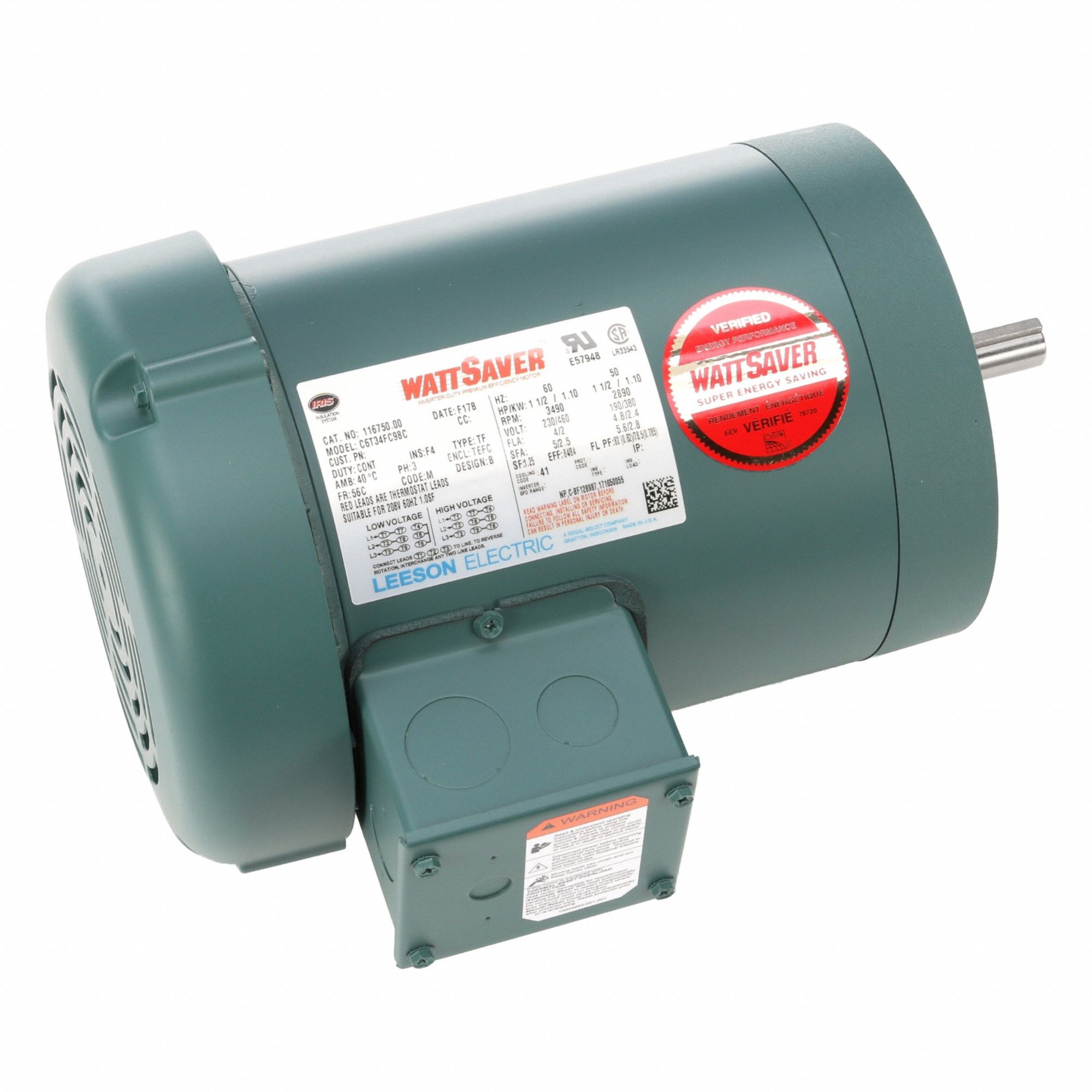

Leeson 3G-OTH-60855 — Technical Specifications

Name: Leeson 3G-OTH-60855 LEESON General Purpose: C-Face Mount, Totally Enclosed Fan Cooled, 1 1/2 hp, 230/460V AC, 3,490 RPM (MPN 116750.00). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 4.0/2.0 A; Nameplate RPM @ 60 Hz: 3,490 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose: C-Face Mount is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It delivers 1 1/2 hp at 3,490 RPM (60 Hz) and operates on 230/460V AC with a full load current of 4.0/2.0 A (MPN 116750.00).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 1 1/2 hp, 3,490 RPM
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,490 RPM
Manufacturer Part Number	116750.00
Full Load Current @ 60 Hz	4.0/2.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
