Leeson 3G-OTH-60877 — Technical Specifications

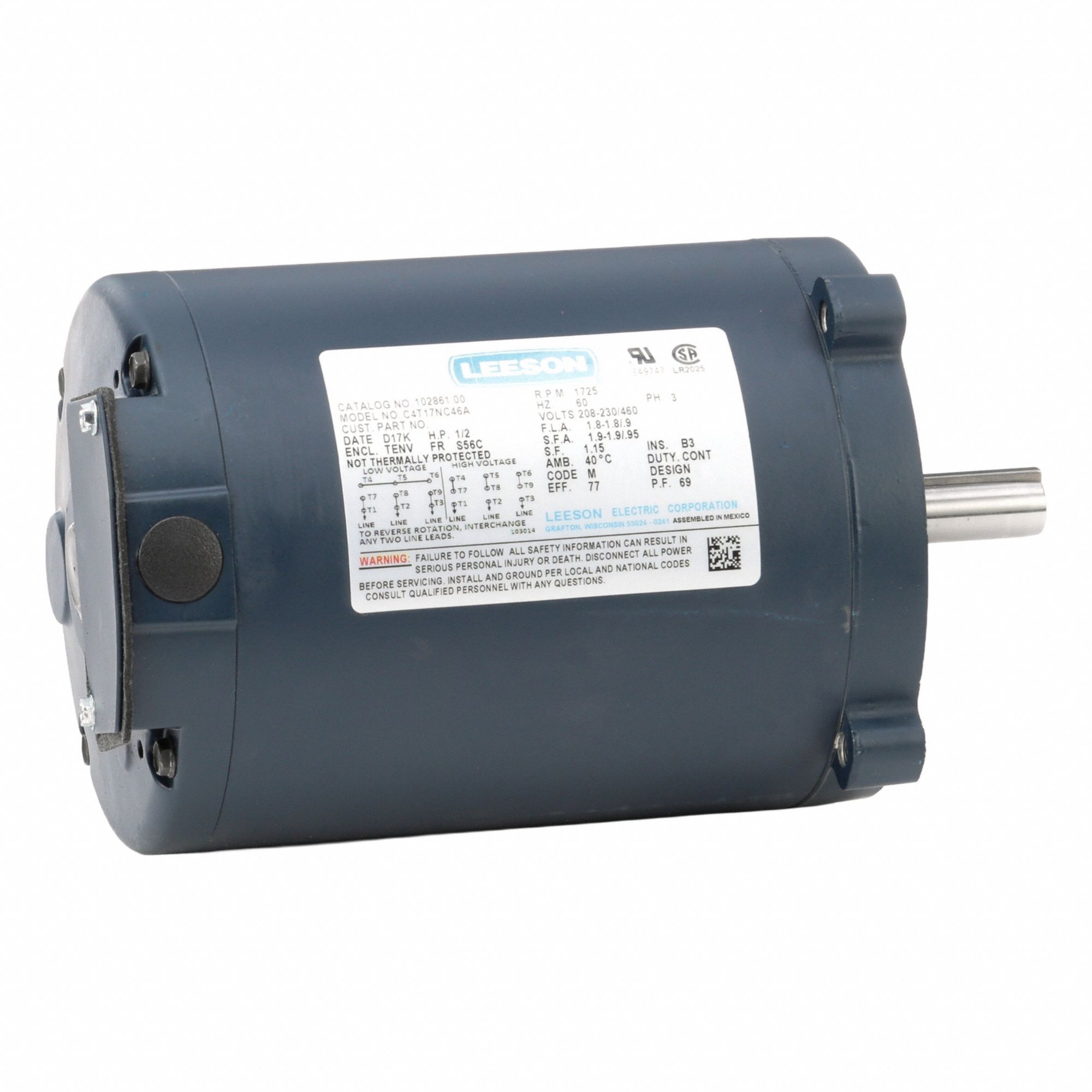

The LEESON General Purpose: C-Face Mount is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Non-Ventilated (TENV) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 1/2 hp with a nameplate voltage of 230/460V AC and a full load current of 1.8/0.9 A. This motor is identified by manufacturer part number 102861.00.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Non-Ventilated, 1/2 hp |
| Brand | LEESON |
| Motor Enclosure | TENV |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 102861.00 |
| Full Load Current @ 60 Hz | 1.8/0.9 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
