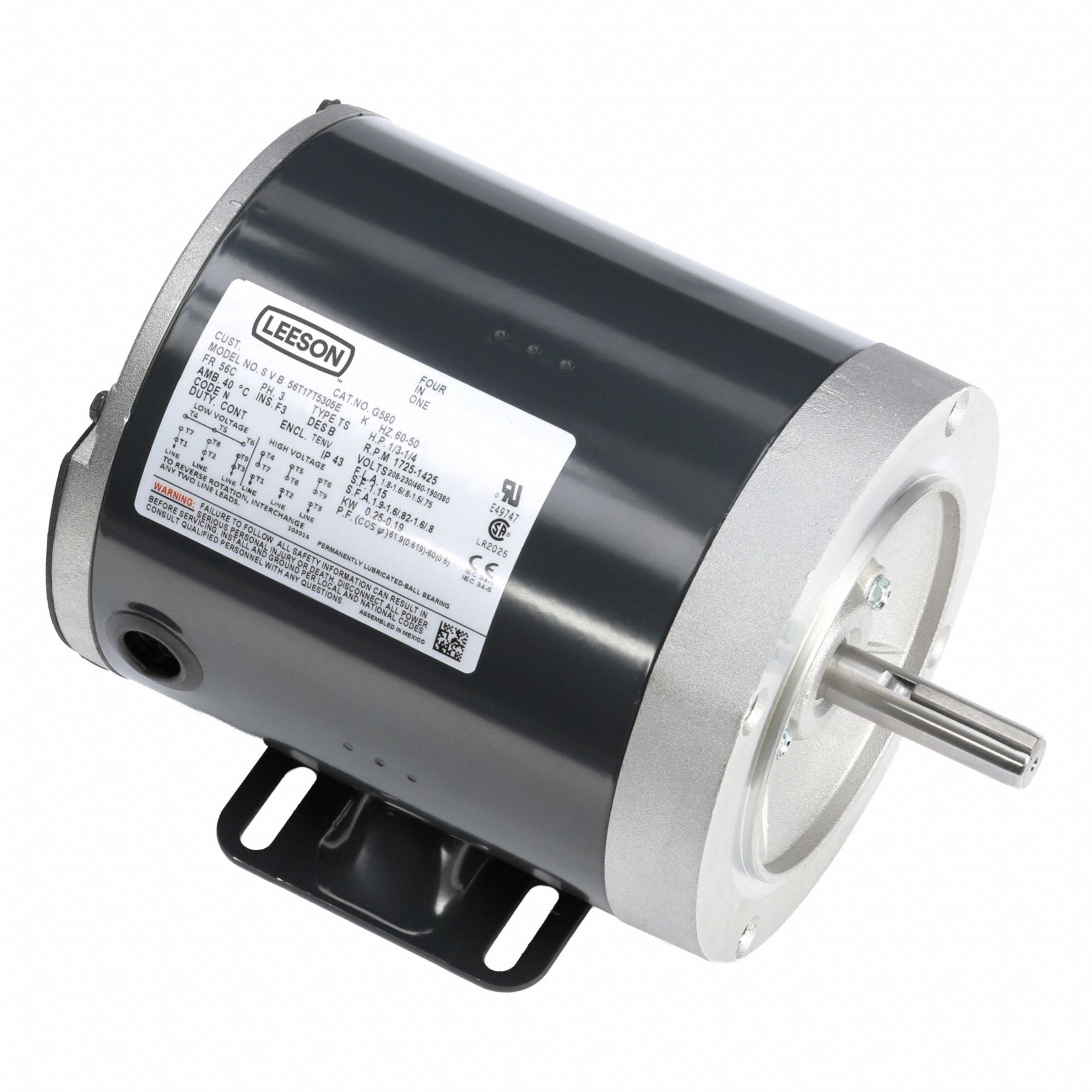

Leeson 3G-OTH-55104 — Technical Specifications

Name: Leeson 3G-OTH-55104 LEESON General Purpose: Universal Mount, Totally Enclosed Non-Ventilated, 1/3 hp, 208-230/460V AC (MPN 056T17T5305). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.8-1.6/0.8 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TENV.
Brand: Leeson

The LEESON General Purpose: Universal Mount is a 3-phase AC motor in a TENV enclosure, rated at 1/3 hp with a nameplate speed of 1,725 RPM at 60 Hz. It operates on 208-230/460V AC and draws a full load current of 1.8-1.6/0.8 A at 60 Hz. This motor is designed for general-purpose industrial applications requiring a universal mounting configuration.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Totally Enclosed Non-Ventilated, 1/3 hp
Brand	LEESON
Motor Enclosure	TENV
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17T5305
Full Load Current @ 60 Hz	1.8-1.6/0.8 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
