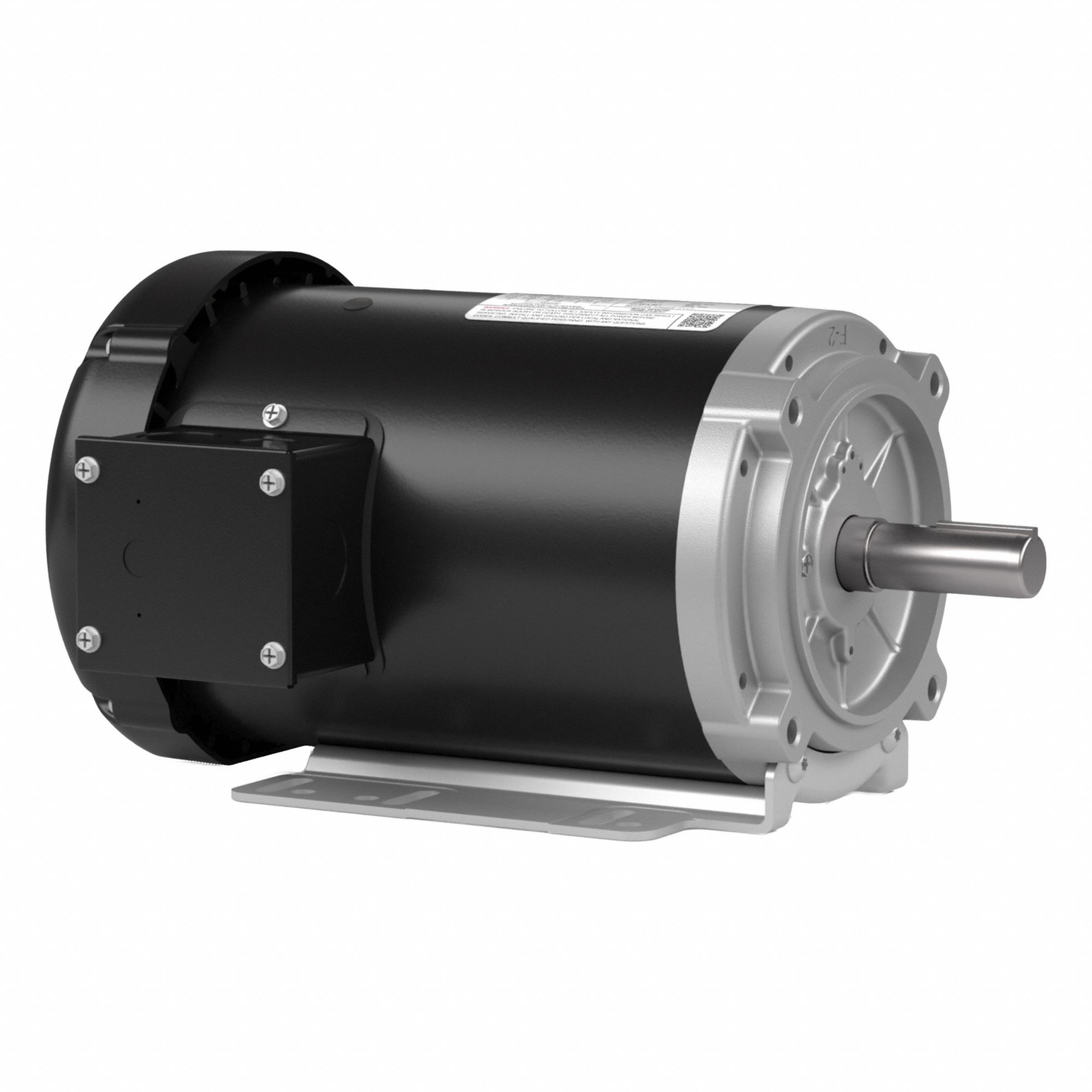

Leeson 3G-OTH-55201 — Technical Specifications

Name: Leeson 3G-OTH-55201 LEESON General Purpose 3 Phase: Universal Mount, Open Drip Proof, 3/4 hp, 208-230/460V AC, 1,140 RPM (MPN 145TTDR16095). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 2.8/1.4 A; Nameplate RPM @ 60 Hz: 1,140 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose 3 Phase: Universal Mount is a 3-phase general purpose AC motor with an ODP enclosure. It operates at 1,140 RPM at 60 Hz and accepts 208-230/460V AC, drawing 2.8/1.4 A full load current. This 3/4 hp motor is identified by manufacturer part number 145TTDR16095.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Open Drip Proof, 3/4 hp, 1,140 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,140 RPM
Manufacturer Part Number	145TTDR16095
Full Load Current @ 60 Hz	2.8/1.4 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
