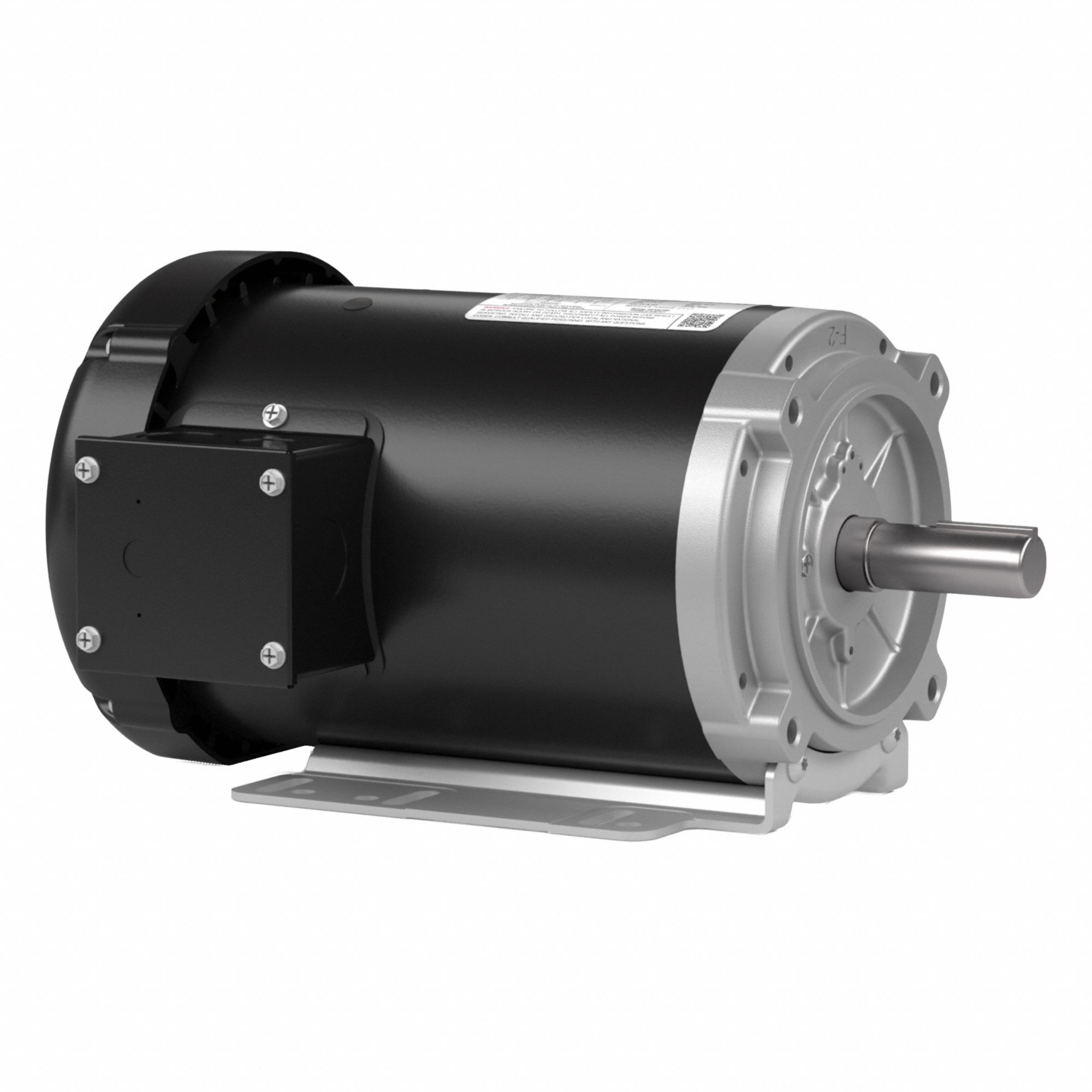

Leeson 3G-OTH-55225 — Technical Specifications

Name: Leeson 3G-OTH-55225 LEESON General Purpose 3 Phase: Universal Mount, Open Drip Proof, 1 hp, 208-230/460V AC, 1,725 RPM (MPN 145TTDR16531). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 3.1-3.2/1.6 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose 3 Phase: Universal Mount is a 1 hp, ODP-enclosed, 3-phase AC motor with a nameplate speed of 1,725 RPM at 60 Hz. It operates at 208-230/460V AC with a full load current of 3.1-3.2/1.6 A. This universal mount motor is designed for general-purpose industrial applications.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Open Drip Proof, 1 hp, 1,725 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	145TTDR16531
Full Load Current @ 60 Hz	3.1-3.2/1.6 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
