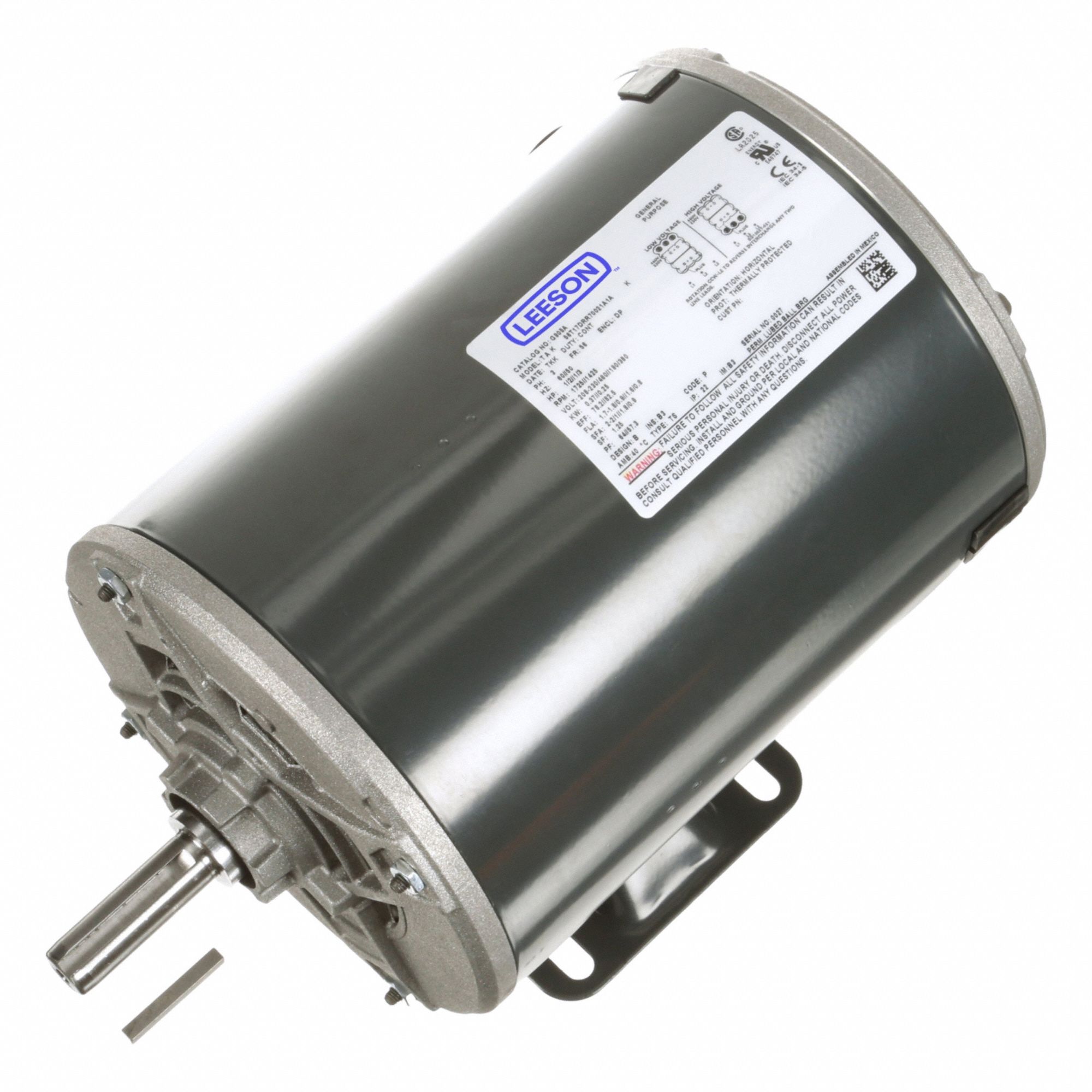

Leeson 3G-OTH-54847 — Technical Specifications

Name: Leeson 3G-OTH-54847 LEESON General Purpose Motor: Rigid Base Mount, Open Drip Proof, 1/2 hp, 208-230/460V AC, 1,725 RPM (MPN 056T17DRR70021A1). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.7-1.8/0.90 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose Motor: Rigid Base Mount (SKU 54JH48) is a rigid base 3-phase AC motor with an ODP enclosure. It delivers 1/2 hp at 1,725 RPM and operates on 208-230/460V AC with a full load current of 1.7-1.8/0.90 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Open Drip Proof, 1/2 hp, 1,725 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17DRR70021A1
Full Load Current @ 60 Hz	1.7-1.8/0.90 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
