Leeson 3G-OTH-59218 — Technical Specifications

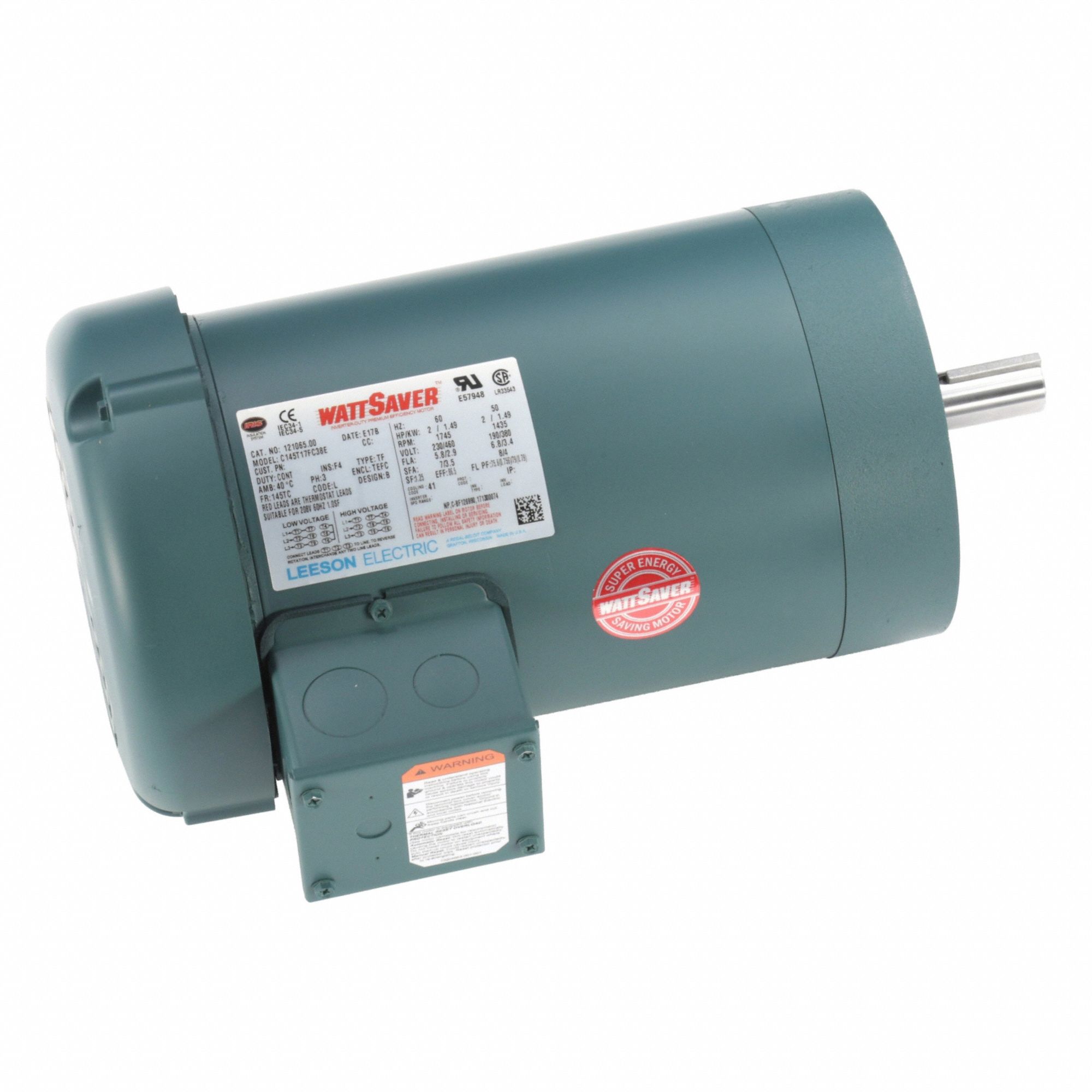

The LEESON Three Phase TEFC Motor (C-Face Mount) is a 2 hp, totally enclosed fan cooled (TEFC) general purpose AC motor with a C-Face mounting configuration. It operates at 1,745 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 5.8/2.9 A. This model (MPN 121065.00) includes a T-Stat for thermal protection.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 2 hp, T-Stat |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,745 RPM |
| Manufacturer Part Number | 121065.00 |
| Full Load Current @ 60 Hz | 5.8/2.9 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
