Leeson 3G-OTH-120487 — Technical Specifications

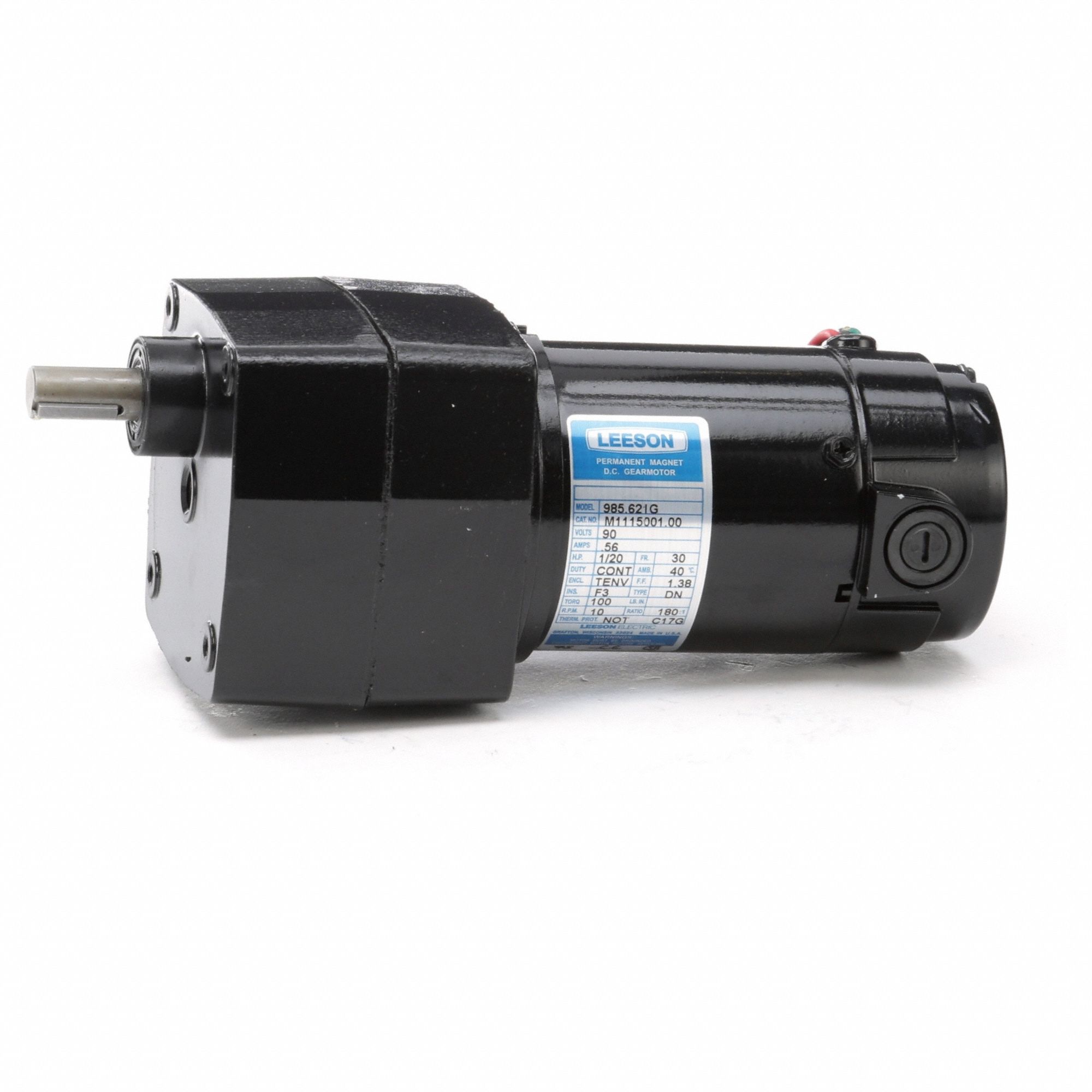

The LEESON Parallel Shaft DC Gearmotor (SKU 794AP9, MPN M1115001.00) is a permanent magnet DC motor with a parallel shaft configuration. It operates at 90V DC, 10 RPM, with a maximum torque of 100 in-lb and a gear ratio of 180:1. The motor has a full load current of 0.56 A and features a TENV (Totally Enclosed Non-Ventilated) enclosure.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | TENV, 10 RPM, 100 in-lb Max Torque |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 0.56 A |
| Manufacturer Part Number | M1115001.00 |
