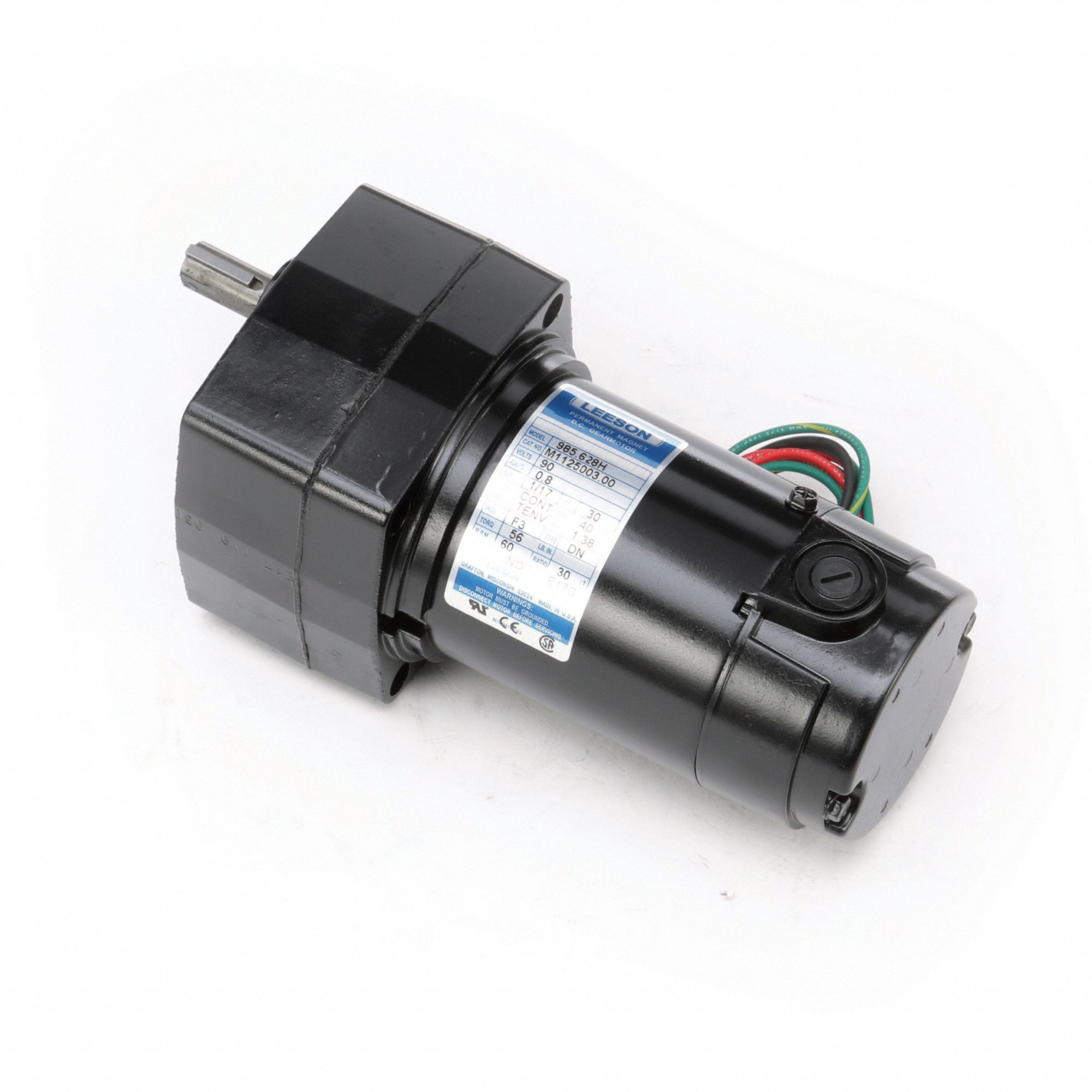

Leeson 3G-OTH-121049 — Technical Specifications
The LEESON Parallel Shaft DC Gearmotor (SKU 794AR2, MPN M1125003.00) is a permanent magnet DC motor with a parallel shaft configuration. It operates at 90V DC, 60 RPM, and delivers a maximum torque of 56 in-lb with a 30:1 gear ratio. The motor is TENV (Totally Enclosed Non-Ventilated) and has a full load current of 0.8 A.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | TENV, 60 RPM, 56 in-lb Max Torque, 0.8 A |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 0.8 A |
| Manufacturer Part Number | M1125003.00 |
