Leeson 3G-OTH-122121 — Technical Specifications

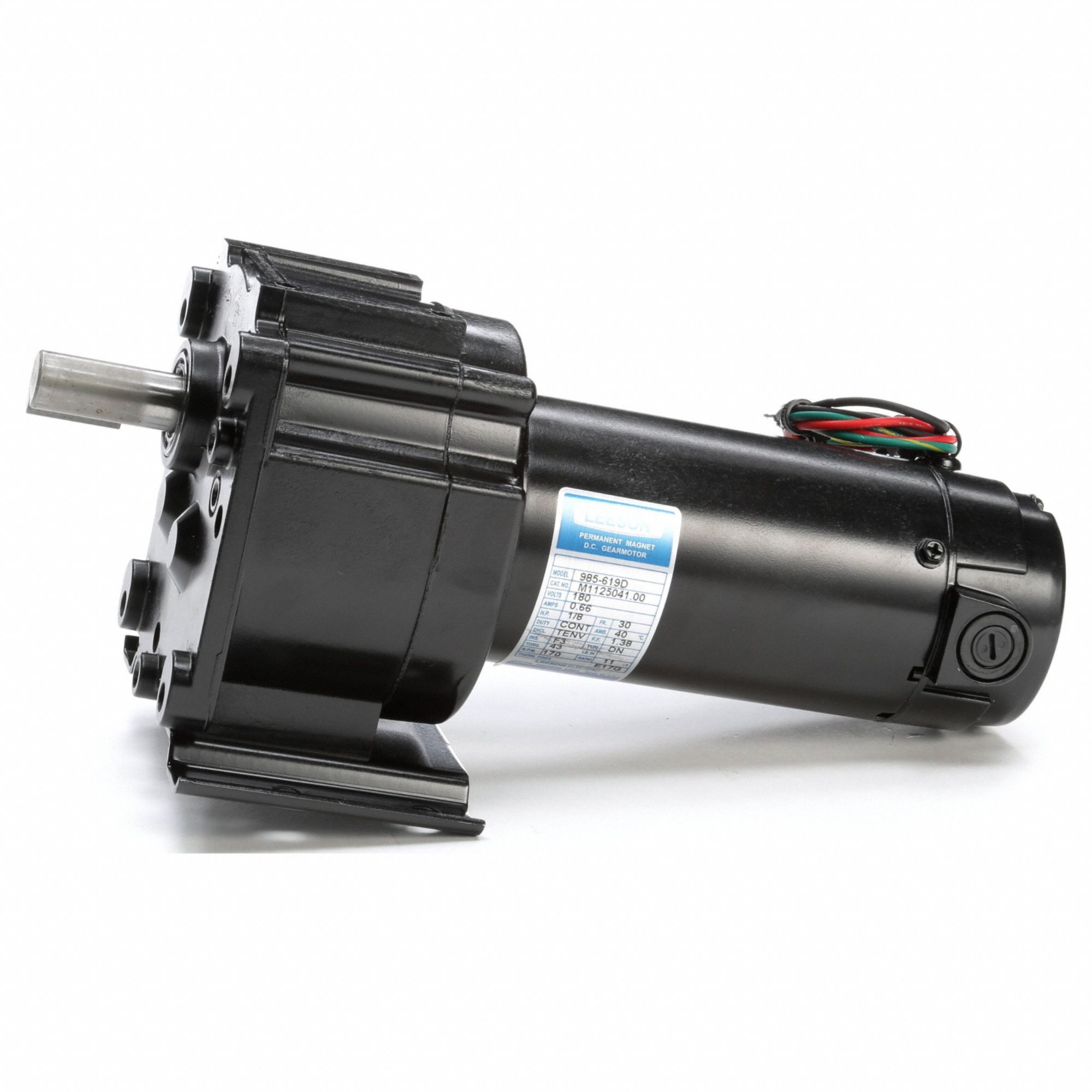

The LEESON Parallel Shaft DC Gearmotor (SKU 794AU0, MPN M1125041.00) is a permanent magnet DC motor with a parallel shaft configuration. It operates at 180V DC, 170 RPM, with a maximum torque of 43 in-lb and a 10:1 gear ratio. The motor is TENV (Totally Enclosed Non-Ventilated) and has a full load current of 0.66 A.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 180V |
| Type | TENV, 170 RPM, 43 in-lb Max Torque |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 0.66 A |
| Manufacturer Part Number | M1125041.00 |
