Leeson 3G-OTH-116115 — Technical Specifications

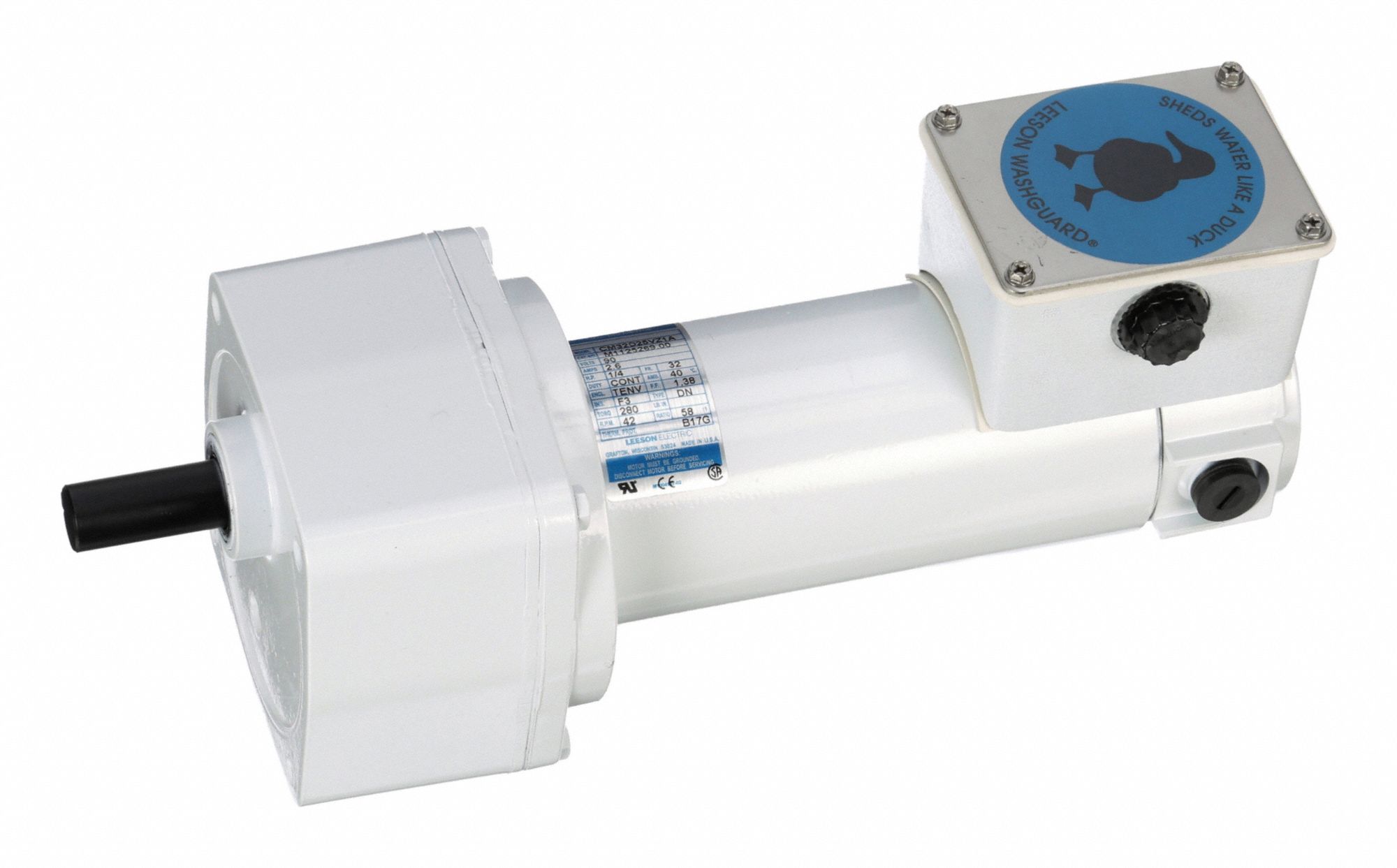

The LEESON Parallel Shaft Washdown-Duty DC Gearmotor (SKU 794AZ9, MPN M1125269.00) is a permanent magnet DC motor with a parallel shaft design. It operates at 90V DC, 42 RPM, and delivers a maximum torque of 220 in-lb with a 58:1 gear ratio. The motor is TENV (Totally Enclosed Non-Ventilated) and has a full load current of 2.6 A.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | TENV, 42 RPM, 220 in-lb Max Torque, 2.6 A |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 2.6 A |
| Manufacturer Part Number | M1125269.00 |
