Leeson 3G-OTH-54838 — Technical Specifications

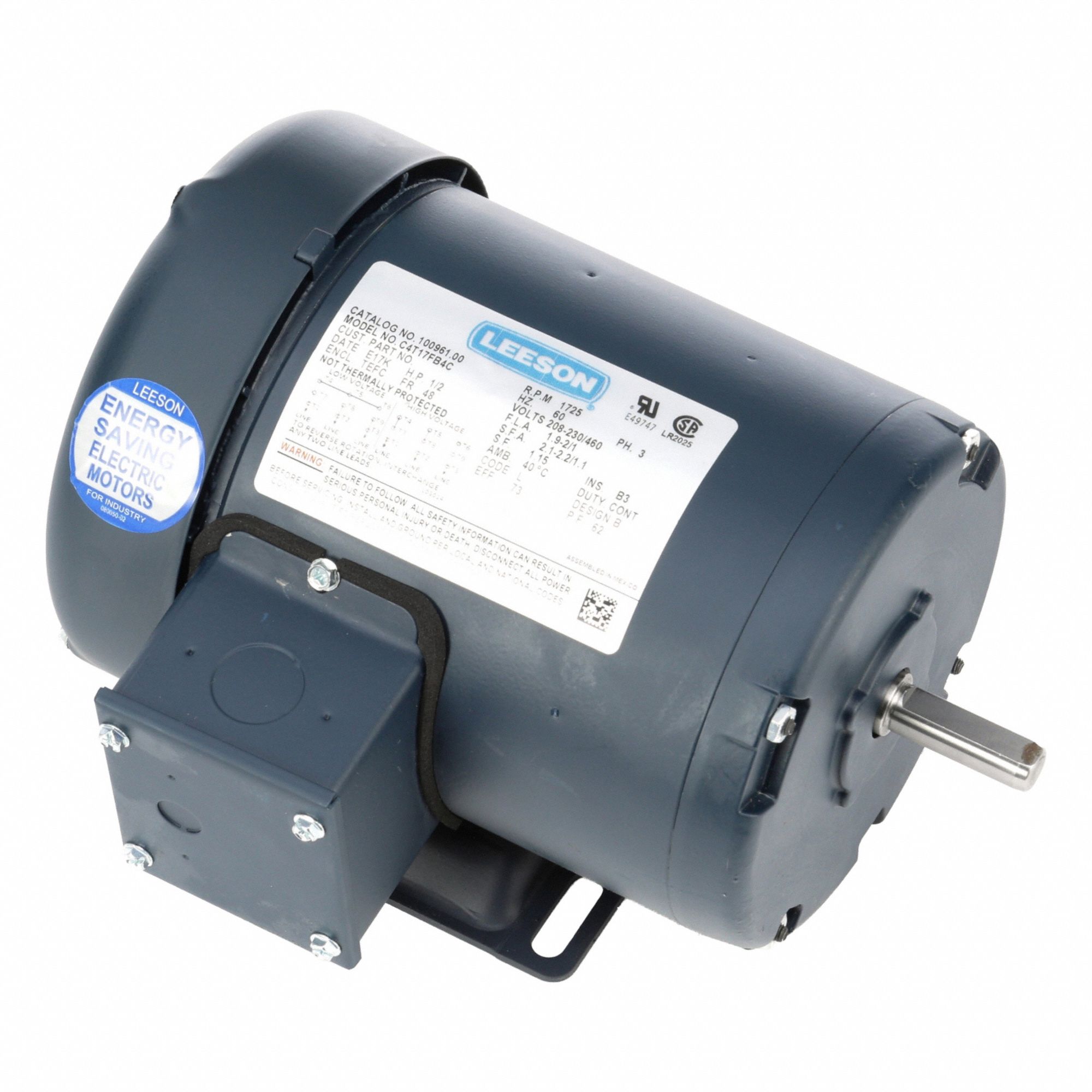

The LEESON General Purpose Motor: Rigid Base Mount (SKU 820HM8, MPN 100961.00) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 1/2 hp, with a nameplate voltage of 230/460V AC at 60 Hz, a full load current of 2.0 A at 60 Hz, and a nameplate RPM of 1,725 RPM at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 1/2 hp |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 100961.00 |
| Full Load Current @ 60 Hz | 2.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
